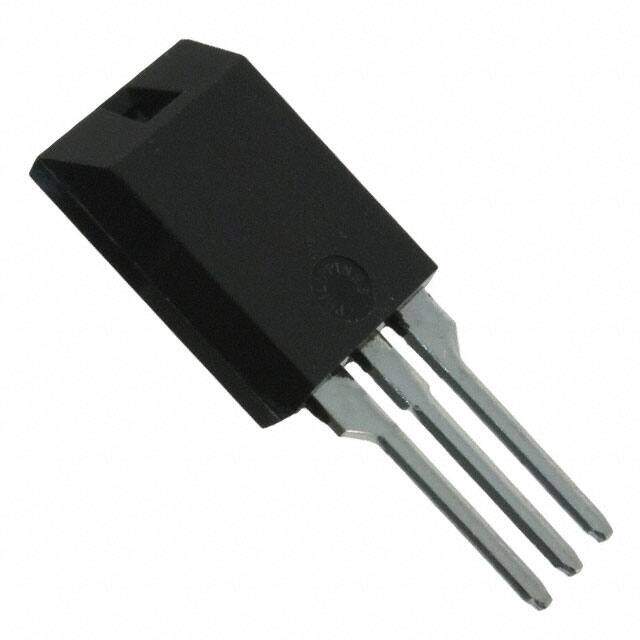

IXFC30N60P
RoHS
/
Package ISOPLUS220?
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 600V 15A ISOPLUS220
PDF
/
Inventory: 2036
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case ISOPLUS220?
Number of Pins 3
Transistor Element Material SILICON
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tube
Published 2006
Series HiPerFET?, PolarHT?
JESD-609 Code e1
Pbfree Code yes
Part Status Obsolete
Avalanche Energy Rating (Eas) 1500 mJ
Pulsed Drain Current-Max (IDM) 80A
Drain to Source Breakdown Voltage 600V
Drain-source On Resistance-Max 0.25Ohm
Gate to Source Voltage (Vgs) 30V
Continuous Drain Current (ID) 15A
Turn-Off Delay Time 75 ns
Fall Time (Typ) 25 ns
Vgs (Max) ±30V
Drive Voltage (Max Rds On,Min Rds On) 10V
Rise Time 20ns
Gate Charge (Qg) (Max) @ Vgs 85nC @ 10V
Current - Continuous Drain (Id) @ 25°C 15A Tc
Input Capacitance (Ciss) (Max) @ Vds 3820pF @ 25V
Vgs(th) (Max) @ Id 5V @ 4mA
Rds On (Max) @ Id, Vgs 250m Ω @ 15A, 10V
Transistor Application SWITCHING
FET Type N-Channel
Case Connection ISOLATED
Power Dissipation 166W
Operating Mode ENHANCEMENT MODE
Element Configuration Single
Power Dissipation-Max 166W Tc
Number of Elements 1
Qualification Status Not Qualified
Pin Count 3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Current Rating 30A
Peak Reflow Temperature (Cel) NOT SPECIFIED
Technology MOSFET (Metal Oxide)
Voltage - Rated DC 600V
Additional Feature AVALANCHE RATED, UL RECOGNIZED
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
