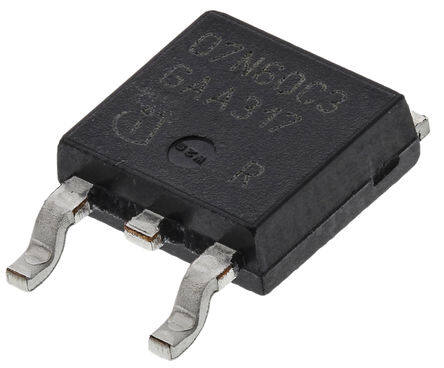

SPD07N60C3
RoHS
RoHS compliant
RoHS compliantPackage TO-252-3, DPak (2 Leads + Tab), SC-63
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 600V 7.3A TO252-3
PDF
/
Buying Options
Total Price: USD $1.56
Unit Price: USD $1.558
≥1 USD $1.558
≥10 USD $1.27775
≥100 USD $1.23785
≥500 USD $1.19795
≥1000 USD $1.15805
Inventory: 1143
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Avalanche Energy Rating (Eas) 230 mJ
DS Breakdown Voltage-Min 600V
Pulsed Drain Current-Max (IDM) 21.9A
Drain-source On Resistance-Max 0.6Ohm
Drain Current-Max (Abs) (ID) 7.3A
JEDEC-95 Code TO-252AA
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 10V
Drain to Source Voltage (Vdss) 600V
Gate Charge (Qg) (Max) @ Vgs 27nC @ 10V
Current - Continuous Drain (Id) @ 25°C 7.3A Tc
Input Capacitance (Ciss) (Max) @ Vds 790pF @ 25V
Vgs(th) (Max) @ Id 3.9V @ 350μA
Rds On (Max) @ Id, Vgs 600m Ω @ 4.6A, 10V
Transistor Application SWITCHING
FET Type N-Channel
Case Connection DRAIN
Operating Mode ENHANCEMENT MODE
Power Dissipation-Max 83W Tc
Configuration SINGLE WITH BUILT-IN DIODE
Number of Elements 1
Qualification Status Not Qualified
JESD-30 Code R-PSSO-G2
Pin Count 3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code compliant
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position SINGLE
Technology MOSFET (Metal Oxide)
Subcategory FET General Purpose Power
Additional Feature AVALANCHE RATED
Terminal Finish Tin (Sn)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Series CoolMOS?
Published 2003
Packaging Tube
Operating Temperature -55°C~150°C TJ
Physical
Transistor Element Material SILICON
Surface Mount YES
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
Alternative Model
