IRFH7545TRPBF
RoHS
RoHS compliant
RoHS compliantPackage 8-PowerTDFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 60V 85A 6-PQFN
PDF
/
Buying Options
Total Price: USD $0.73
Unit Price: USD $0.729948
≥1 USD $0.729948
≥10 USD $0.71425
≥100 USD $0.703785
≥500 USD $2.12705
≥1000 USD $2.05675
Inventory: 30
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-PowerTDFN
Number of Pins 8
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tape & Reel (TR)
Published 2013
Series StrongIRFET?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Technology MOSFET (Metal Oxide)
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Channels 1
Power Dissipation-Max 83W Tc
Element Configuration Single
Turn On Delay Time 8.6 ns
FET Type N-Channel
Rds On (Max) @ Id, Vgs 5.2m Ω @ 51A, 10V
Vgs(th) (Max) @ Id 3.7V @ 100μA
Input Capacitance (Ciss) (Max) @ Vds 3890pF @ 25V
Current - Continuous Drain (Id) @ 25°C 85A Tc
Gate Charge (Qg) (Max) @ Vgs 110nC @ 10V
Rise Time 26ns
Drain to Source Voltage (Vdss) 60V
Drive Voltage (Max Rds On,Min Rds On) 6V 10V
Vgs (Max) ±20V
Fall Time (Typ) 16 ns
Turn-Off Delay Time 43 ns
Continuous Drain Current (ID) 85A
Gate to Source Voltage (Vgs) 20V
Dimensions
Height 1.17mm
Length 6.15mm
Width 5.1mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free

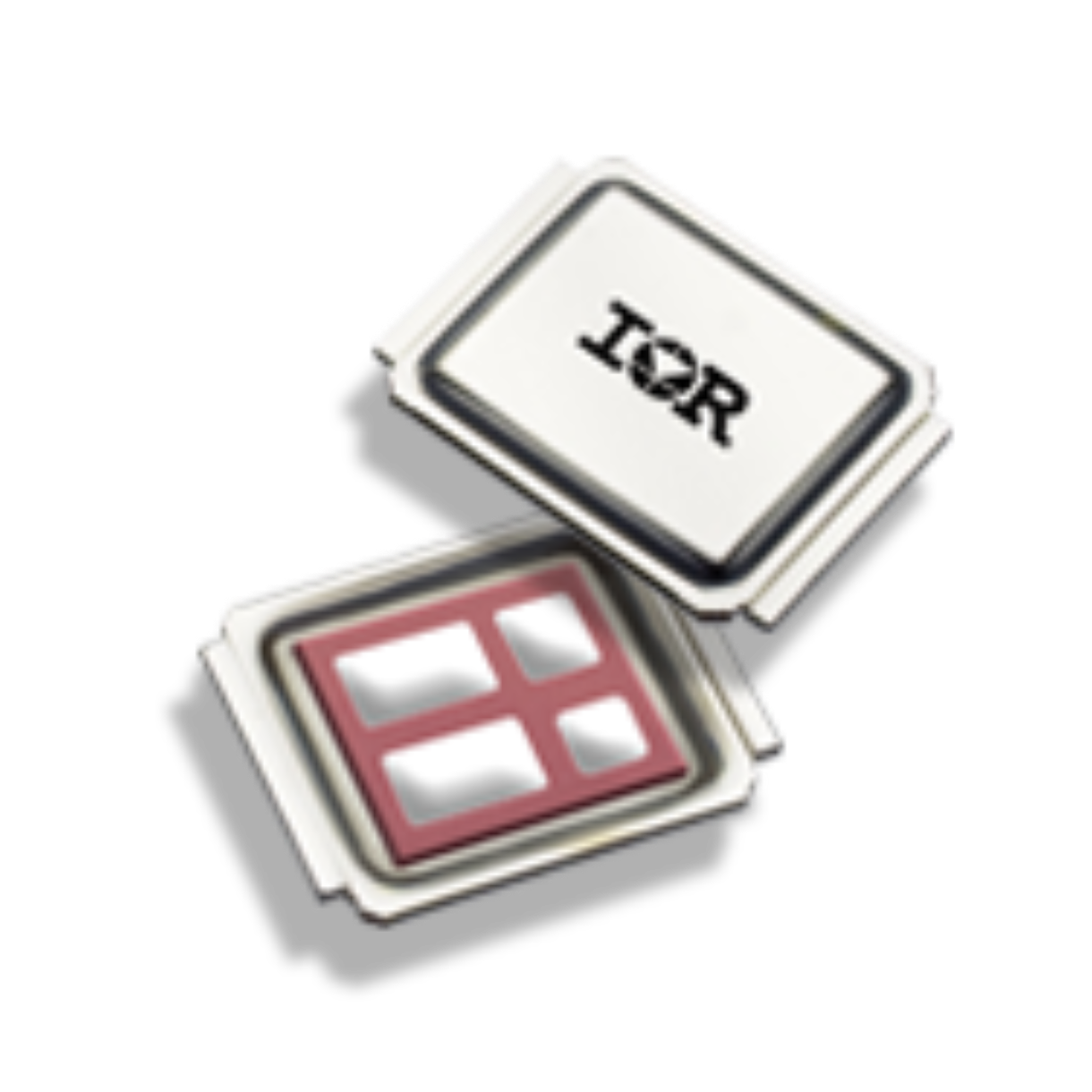

Alternative Model
