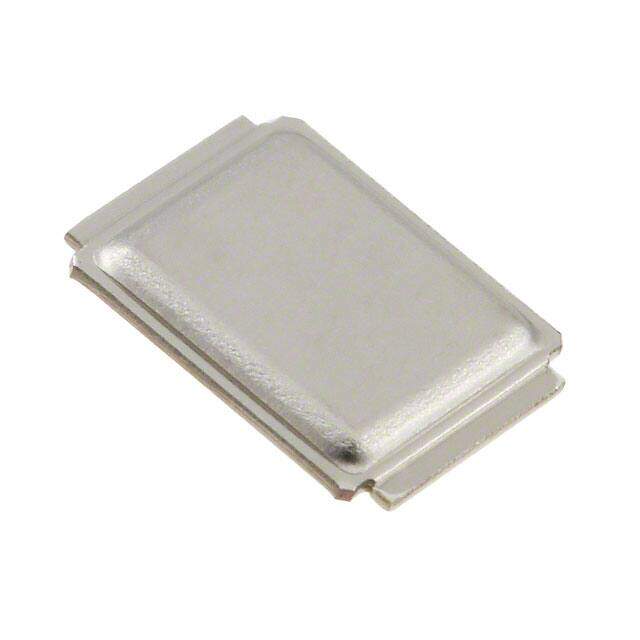

IRF7946TRPBF
RoHS
RoHS compliant
RoHS compliantPackage DirectFET? Isometric MX
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N CH 40V 90A DIRECTFET MX
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Technical
Nominal Vgs 3 V
Gate to Source Voltage (Vgs) 20V
Threshold Voltage 3V
Continuous Drain Current (ID) 90A
Turn-Off Delay Time 54 ns
Fall Time (Typ) 41 ns
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 6V 10V
Drain to Source Voltage (Vdss) 40V
Rise Time 49ns
Gate Charge (Qg) (Max) @ Vgs 212nC @ 10V
Current - Continuous Drain (Id) @ 25°C 90A Tc
Input Capacitance (Ciss) (Max) @ Vds 6852pF @ 25V
Vgs(th) (Max) @ Id 3.9V @ 150μA
Rds On (Max) @ Id, Vgs 1.4m Ω @ 90A, 10V
FET Type N-Channel
Turn On Delay Time 20 ns
Power Dissipation 96W
Power Dissipation-Max 96W Tc
Configuration Single
Number of Elements 1
Technology MOSFET (Metal Oxide)
Subcategory FET General Purpose Power
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series HEXFET?, StrongIRFET?
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C TJ
Physical
Number of Pins 7
Package / Case DirectFET? Isometric MX
Mounting Type Surface Mount
Mount Surface Mount
