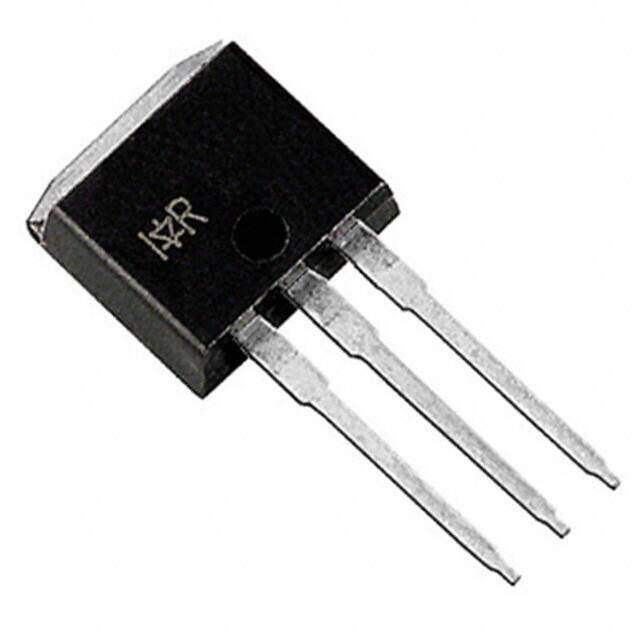

IRF1104L
RoHS
/
Package TO-262-3 Long Leads, I2Pak, TO-262AA
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 40V 100A TO-262
PDF
/
Buying Options
Total Price: USD $3.32
Unit Price: USD $3.31835
≥1 USD $3.31835
≥10 USD $2.7227
≥100 USD $2.63815
≥500 USD $2.55265
≥1000 USD $2.46715
Inventory: 56
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
Avalanche Energy Rating (Eas) 350 mJ
DS Breakdown Voltage-Min 40V
Pulsed Drain Current-Max (IDM) 400A
Drain-source On Resistance-Max 0.009Ohm
Drain Current-Max (Abs) (ID) 100A
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 10V
Drain to Source Voltage (Vdss) 40V
Gate Charge (Qg) (Max) @ Vgs 93nC @ 10V
Current - Continuous Drain (Id) @ 25°C 100A Tc
Input Capacitance (Ciss) (Max) @ Vds 2900pF @ 25V
Vgs(th) (Max) @ Id 4V @ 250μA
Rds On (Max) @ Id, Vgs 9m Ω @ 60A, 10V
Transistor Application SWITCHING
FET Type N-Channel
Case Connection DRAIN
Operating Mode ENHANCEMENT MODE
Power Dissipation-Max 2.4W Ta 170W Tc
Configuration SINGLE WITH BUILT-IN DIODE
Number of Elements 1
Qualification Status Not Qualified
JESD-30 Code R-PSIP-T3
Time@Peak Reflow Temperature-Max (s) 30
Peak Reflow Temperature (Cel) 225
Terminal Position SINGLE
Technology MOSFET (Metal Oxide)
HTS Code 8541.29.00.95
Additional Feature AVALANCHE RATED, HIGH RELIABILITY, ULTRA LOW RESISTANCE
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e0
Series HEXFET?
Published 1998
Packaging Tube
Operating Temperature -55°C~175°C TJ
Physical
Transistor Element Material SILICON
Surface Mount NO
Package / Case TO-262-3 Long Leads, I2Pak, TO-262AA
Mounting Type Through Hole
Alternative Model
