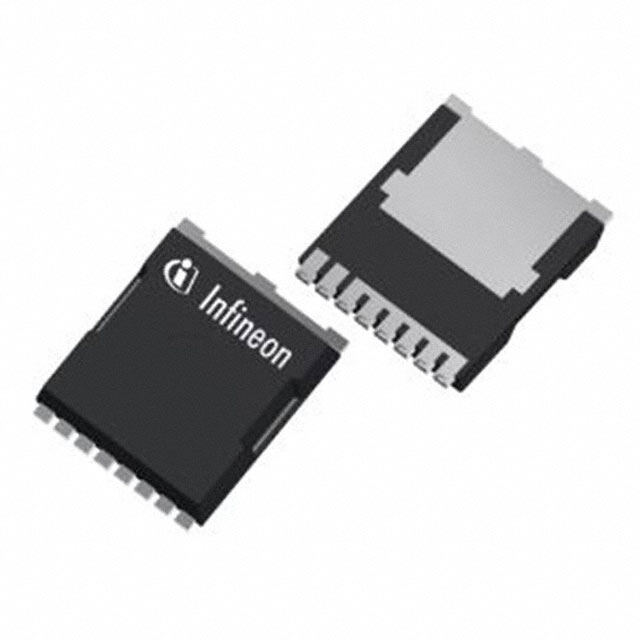

IPT60R080G7XTMA1
RoHS
RoHS compliant
RoHS compliantPackage 8-PowerSFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 650V 29A HSOF-8
PDF
/
Buying Options
Total Price: USD $4.22
Unit Price: USD $4.2152
≥1 USD $4.2152
≥10 USD $3.6124
≥100 USD $3.1174
Inventory: 1116
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Surface Mount
Package / Case 8-PowerSFN
Surface Mount YES
Transistor Element Material SILICON
Manufacturer Package Identifier PG-HSOF-8
Technical
Operating Temperature -40°C~150°C TJ
Packaging Tape & Reel (TR)
Published 2014
Series CoolMOS? G7
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Terminal Finish Tin (Sn)
Technology MOSFET (Metal Oxide)
Terminal Position SINGLE
Terminal Form FLAT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PSSO-F3
Number of Elements 1
Configuration SINGLE WITH BUILT-IN DIODE
Number of Channels 1
Power Dissipation-Max 167W Tc
Operating Mode ENHANCEMENT MODE
Power Dissipation 167W
Case Connection DRAIN
Turn On Delay Time 19 ns
FET Type N-Channel
Transistor Application SWITCHING
Rds On (Max) @ Id, Vgs 80m Ω @ 9.7A, 10V
Vgs(th) (Max) @ Id 4V @ 490μA
Input Capacitance (Ciss) (Max) @ Vds 1640pF @ 400V
Current - Continuous Drain (Id) @ 25°C 29A Tc
Gate Charge (Qg) (Max) @ Vgs 42nC @ 10V
Drain to Source Voltage (Vdss) 650V
Drive Voltage (Max Rds On,Min Rds On) 10V
Vgs (Max) ±20V
Turn-Off Delay Time 61 ns
Continuous Drain Current (ID) 29A
Gate to Source Voltage (Vgs) 20V
Drain-source On Resistance-Max 0.08Ohm
Drain to Source Breakdown Voltage 600V
Pulsed Drain Current-Max (IDM) 83A
Avalanche Energy Rating (Eas) 97 mJ
Max Junction Temperature (Tj) 150°C
Dimensions
Height 2.4mm
Compliance
RoHS Status ROHS3 Compliant
