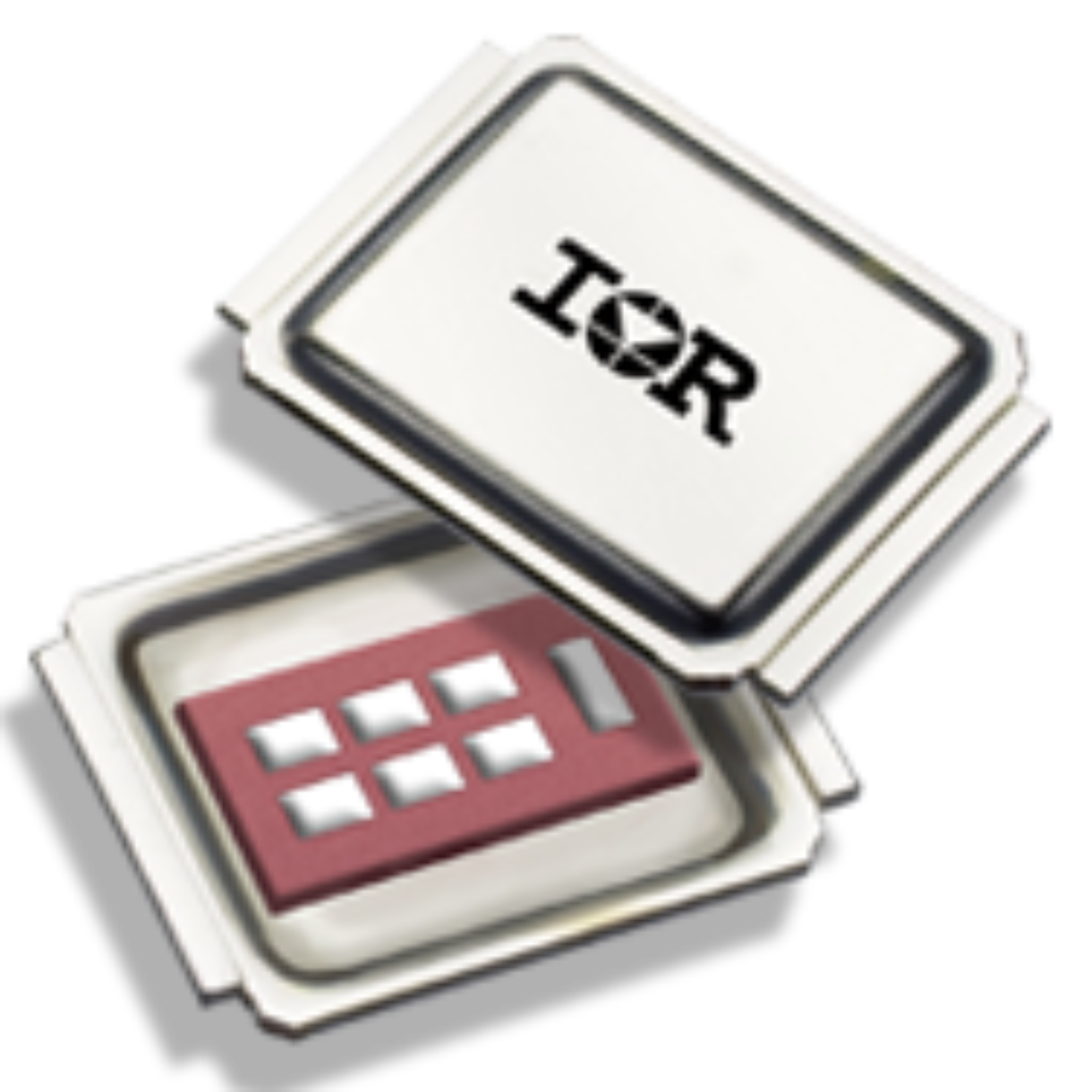

AUIRF7738L2TR
RoHS
RoHS compliant
RoHS compliantPackage DirectFET? Isometric L6
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 40V 315A DIRECTFET
PDF
/
Buying Options
Total Price: USD $27.15
Unit Price: USD $27.151
≥1 USD $27.151
≥10 USD $22.27845
≥100 USD $21.5821
≥500 USD $20.88575
≥1000 USD $20.1894
Inventory: 1169
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case DirectFET? Isometric L6
Number of Pins 13
Transistor Element Material SILICON
Technical
Operating Temperature -55°C~175°C TJ
Packaging Tape & Reel (TR)
Published 2010
Series HEXFET?
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 7
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Additional Feature HIGH RELIABILITY
Subcategory FET General Purpose Power
Technology MOSFET (Metal Oxide)
Terminal Position BOTTOM
JESD-30 Code R-XBCC-N7
Number of Elements 1
Configuration SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max 3.3W Ta 94W Tc
Operating Mode ENHANCEMENT MODE
Power Dissipation 94W
Case Connection DRAIN
Turn On Delay Time 21 ns
FET Type N-Channel
Transistor Application SWITCHING
Rds On (Max) @ Id, Vgs 1.6m Ω @ 109A, 10V
Vgs(th) (Max) @ Id 4V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 7471pF @ 25V
Current - Continuous Drain (Id) @ 25°C 35A Ta 130A Tc
Gate Charge (Qg) (Max) @ Vgs 194nC @ 10V
Rise Time 77ns
Drive Voltage (Max Rds On,Min Rds On) 10V
Vgs (Max) ±20V
Fall Time (Typ) 38 ns
Turn-Off Delay Time 39 ns
Continuous Drain Current (ID) 130A
Gate to Source Voltage (Vgs) 20V
Drain Current-Max (Abs) (ID) 35A
Drain-source On Resistance-Max 0.0016Ohm
Drain to Source Breakdown Voltage 40V
Pulsed Drain Current-Max (IDM) 736A
Avalanche Energy Rating (Eas) 538 mJ
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
