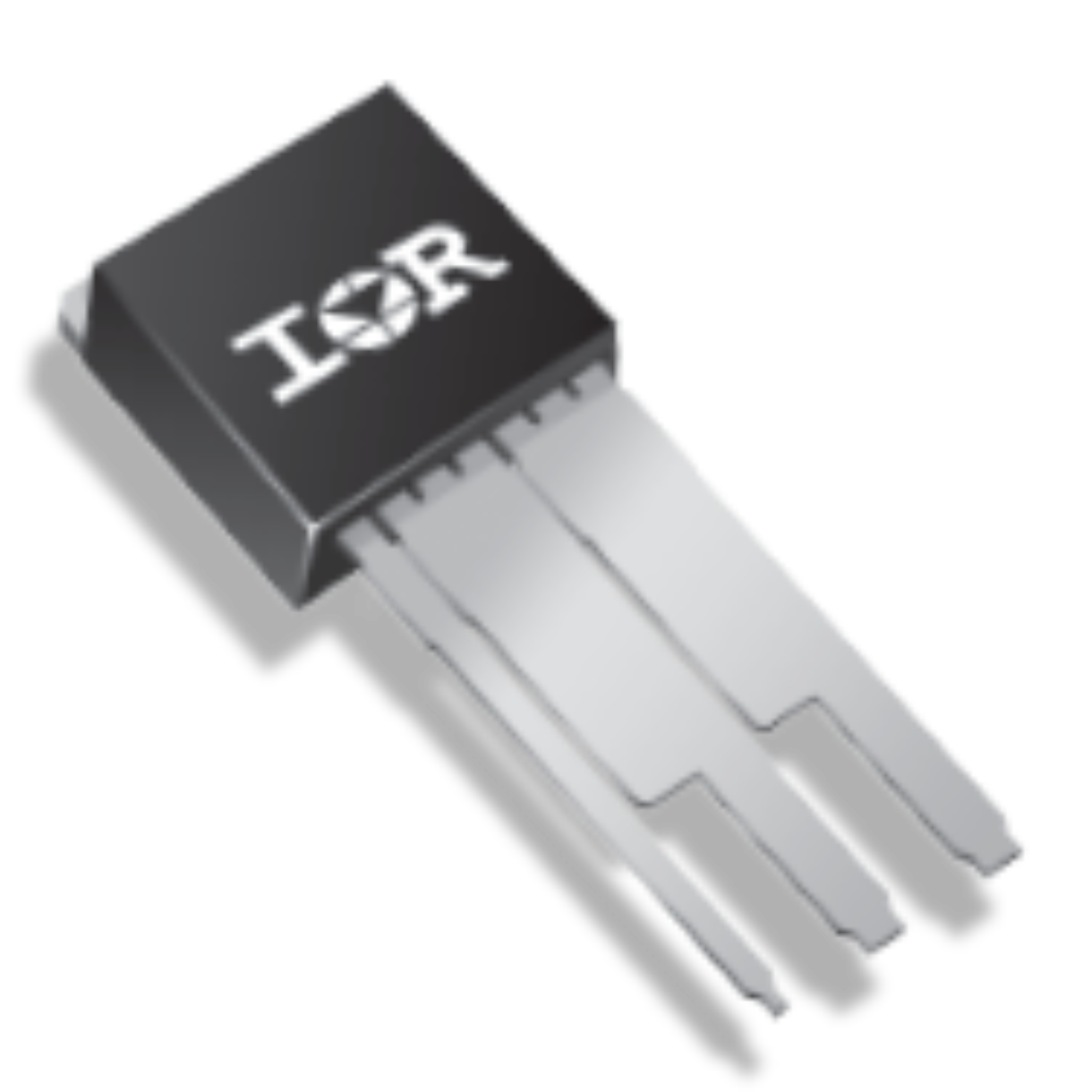

AUIRF2804WL
RoHS
RoHS compliant
RoHS compliantPackage TO-262-3 Wide Leads
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
Trans MOSFET N-CH 40V 295A 3-Pin(3+Tab) TO-262WL Tube
PDF
/
Buying Options
Total Price: USD $28.46
Unit Price: USD $28.45915
≥1 USD $28.45915
≥10 USD $23.351
≥100 USD $22.6214
≥500 USD $21.8918
≥1000 USD $21.1622
Inventory: 1170
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-262-3 Wide Leads
Number of Pins 3
Technical
Operating Temperature -55°C~175°C TJ
Packaging Tube
Published 2010
Series HEXFET?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Subcategory FET General Purpose Power
Technology MOSFET (Metal Oxide)
Number of Elements 1
Power Dissipation-Max 300W Tc
Element Configuration Single
Power Dissipation 300W
Turn On Delay Time 19 ns
FET Type N-Channel
Rds On (Max) @ Id, Vgs 1.8m Ω @ 187A, 10V
Vgs(th) (Max) @ Id 4V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 7978pF @ 25V
Current - Continuous Drain (Id) @ 25°C 240A Tc
Gate Charge (Qg) (Max) @ Vgs 225nC @ 10V
Rise Time 241ns
Drive Voltage (Max Rds On,Min Rds On) 10V
Vgs (Max) ±20V
Fall Time (Typ) 100 ns
Turn-Off Delay Time 71 ns
Continuous Drain Current (ID) 295A
Gate to Source Voltage (Vgs) 20V
Drain Current-Max (Abs) (ID) 240A
Drain to Source Breakdown Voltage 40V
Dimensions
Height 9.65mm
Length 10.67mm
Width 4.83mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
