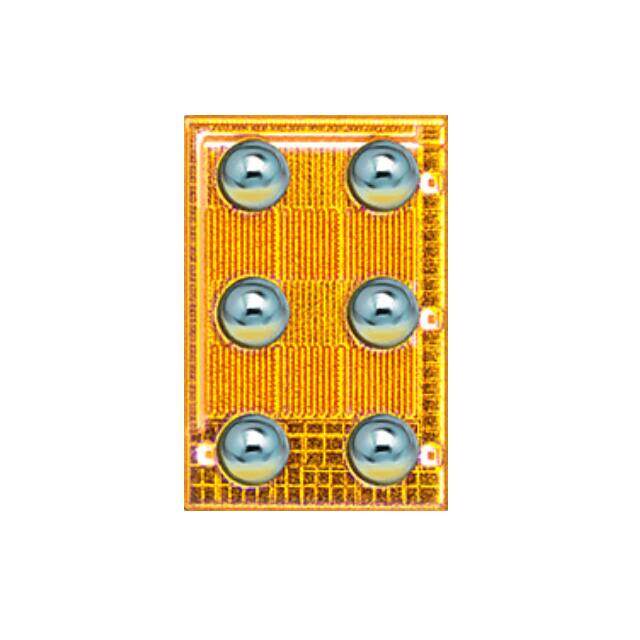

EPC2216
RoHS
RoHS compliant
RoHS compliantPackage Die
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
AEC-Q101 GAN FET 15 V
PDF
/
Buying Options
Total Price: USD $0.86
Unit Price: USD $0.8624
≥1 USD $0.8624
Inventory: 5000
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
FET Feature Standard
Vgs (Max) +6V, -4V
Drive Voltage (Max Rds On,Min Rds On) 5V
Drain to Source Voltage (Vdss) 15V
Gate Charge (Qg) (Max) @ Vgs 0.87nC @ 5V
Current - Continuous Drain (Id) @ 25°C 10mA Ta
Input Capacitance (Ciss) (Max) @ Vds 118pF @ 7.5V
Vgs(th) (Max) @ Id 1V @ 1mA
Rds On (Max) @ Id, Vgs 26mOhm @ 1.5A, 5V
FET Type N-Channel
Technology GaNFET (Gallium Nitride)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Automotive, AEC-Q101, eGaN?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C TJ
Physical
Supplier Device Package Die
Package / Case Die
Mounting Type Surface Mount
