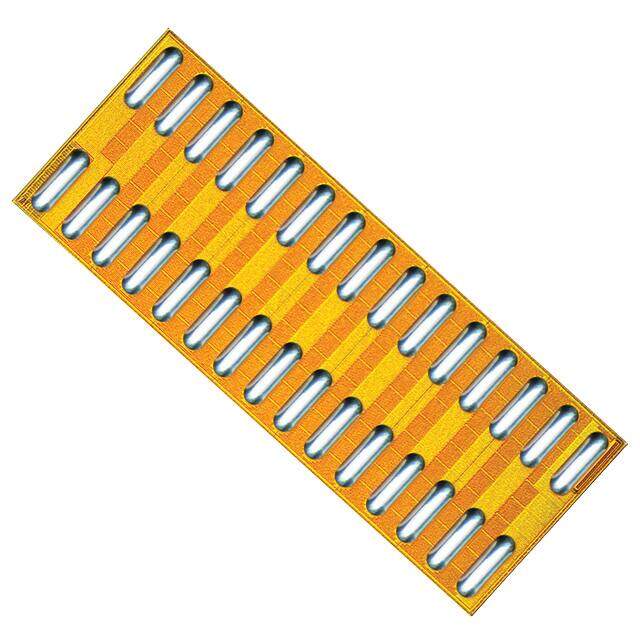

EPC2206
RoHS
RoHS compliant
RoHS compliantPackage Die
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
Ganfet N-ch 80V 90A Die
PDF
/
Buying Options
Total Price: USD $8.3
Unit Price: USD $8.2954
≥1 USD $8.2954
≥10 USD $6.80675
≥100 USD $6.59395
≥500 USD $6.38115
≥1000 USD $6.16835
Inventory: 1098
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Surface Mount
Package / Case Die
Supplier Device Package Die
Technical
Operating Temperature -40°C~150°C TJ
Packaging Tape & Reel (TR)
Series eGaN?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Technology GaNFET (Gallium Nitride)
FET Type N-Channel
Rds On (Max) @ Id, Vgs 2.2mOhm @ 29A, 5V
Vgs(th) (Max) @ Id 2.5V @ 13mA
Input Capacitance (Ciss) (Max) @ Vds 1940pF @ 40V
Current - Continuous Drain (Id) @ 25°C 90A Ta
Gate Charge (Qg) (Max) @ Vgs 19nC @ 5V
Drain to Source Voltage (Vdss) 80V
Drive Voltage (Max Rds On,Min Rds On) 5V
Vgs (Max) +6V, -4V
Compliance
RoHS Status ROHS3 Compliant
