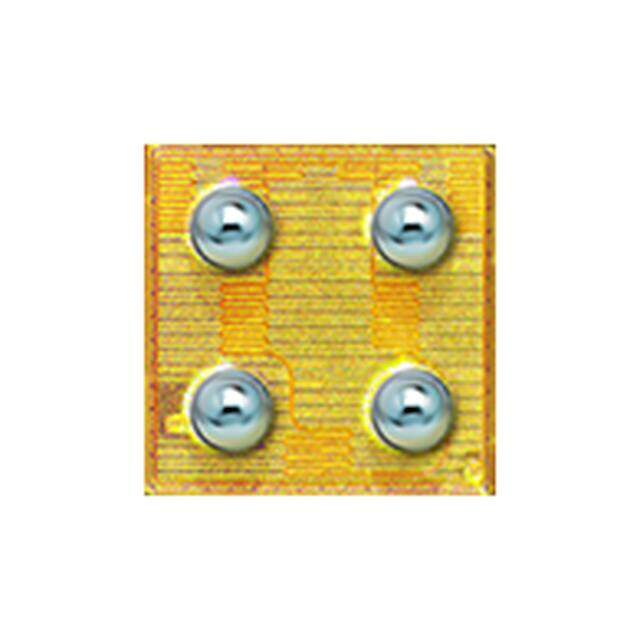

EPC2203
RoHS
RoHS compliant
RoHS compliantPackage Die
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
Ganfet N-ch 80V 1.7A 6SOLDER Bar
PDF
/
Buying Options
Total Price: USD $5.37
Unit Price: USD $5.37035
≥1 USD $5.37035
≥10 USD $4.4061
≥100 USD $4.26835
≥500 USD $4.1306
≥1000 USD $3.99285
≥3000 USD $3.58055
Inventory: 2507
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Surface Mount
Package / Case Die
Supplier Device Package Die
Technical
Operating Temperature -40°C~150°C TJ
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q101, eGaN?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Technology GaNFET (Gallium Nitride)
FET Type N-Channel
Rds On (Max) @ Id, Vgs 80mOhm @ 1A, 5V
Vgs(th) (Max) @ Id 2.5V @ 600μA
Input Capacitance (Ciss) (Max) @ Vds 88pF @ 50V
Current - Continuous Drain (Id) @ 25°C 1.7A
Gate Charge (Qg) (Max) @ Vgs 0.83nC @ 5V
Drain to Source Voltage (Vdss) 80V
Drive Voltage (Max Rds On,Min Rds On) 5V
Vgs (Max) +5.75V, -4V
Compliance
RoHS Status ROHS3 Compliant
