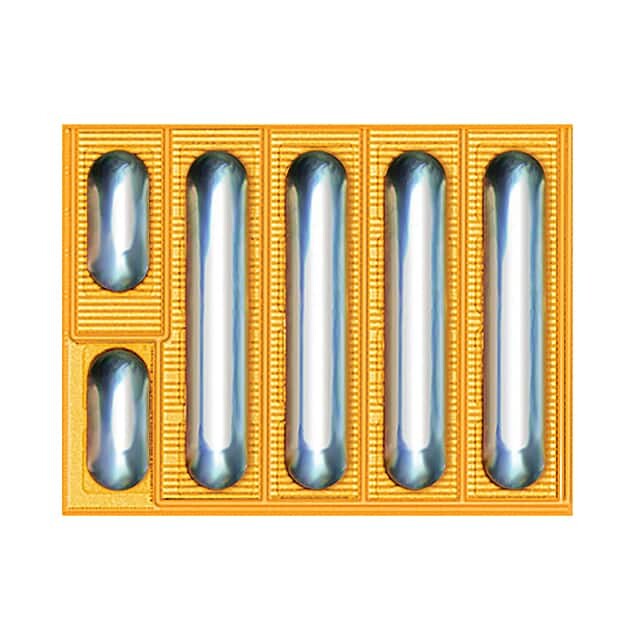

EPC2202
RoHS
RoHS compliant
RoHS compliantPackage Die
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
Ganfet N-ch 80V 18A Die
PDF
/
Buying Options
Total Price: USD $1.71
Unit Price: USD $1.7072
≥1 USD $1.7072
≥10 USD $1.43176
≥100 USD $1.158344
≥500 USD $1.133
Inventory: 45359
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Surface Mount
Package / Case Die
Supplier Device Package Die Outline (6-Solder Bar)
Technical
Operating Temperature -40°C~150°C TJ
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q101, eGaN?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Technology GaNFET (Gallium Nitride)
FET Type N-Channel
Rds On (Max) @ Id, Vgs 17mOhm @ 11A, 5V
Vgs(th) (Max) @ Id 2.5V @ 3mA
Input Capacitance (Ciss) (Max) @ Vds 415pF @ 50V
Current - Continuous Drain (Id) @ 25°C 18A
Gate Charge (Qg) (Max) @ Vgs 4nC @ 5V
Drain to Source Voltage (Vdss) 80V
Drive Voltage (Max Rds On,Min Rds On) 5V
Vgs (Max) +5.75V, -4V
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
