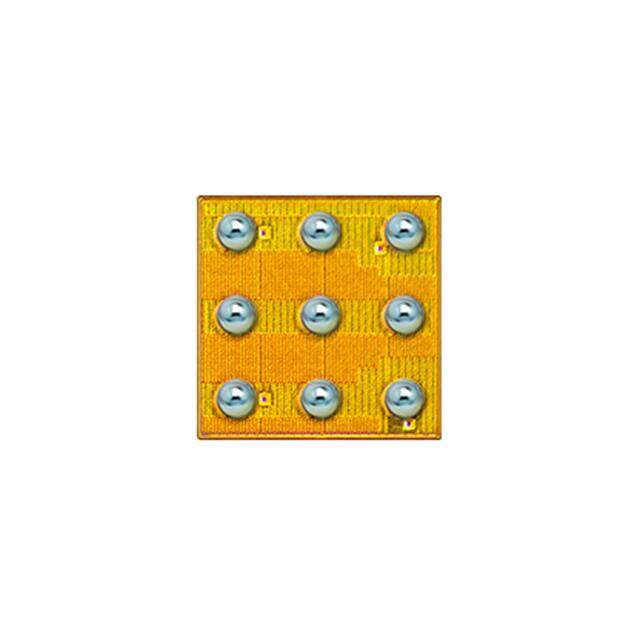

EPC2039
RoHS
RoHS compliant
RoHS compliantPackage Die
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
TRANS GAN 80V BUMPED DIE
PDF
/
Buying Options
Total Price: USD $1.39
Unit Price: USD $1.3904
≥1 USD $1.3904
≥10 USD $1.15368
≥100 USD $0.918544
≥500 USD $0.777251
≥1000 USD $0.65949
Inventory: 27895
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Vgs (Max) +6V, -4V
Drive Voltage (Max Rds On,Min Rds On) 5V
Drain to Source Voltage (Vdss) 80V
Gate Charge (Qg) (Max) @ Vgs 2.4nC @ 5V
Current - Continuous Drain (Id) @ 25°C 6.8A Ta
Input Capacitance (Ciss) (Max) @ Vds 210pF @ 40V
Vgs(th) (Max) @ Id 2.5V @ 2mA
Rds On (Max) @ Id, Vgs 25mOhm @ 6A, 5V
FET Type N-Channel
Technology GaNFET (Gallium Nitride)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series eGaN?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C TJ
Physical
Supplier Device Package Die
Package / Case Die
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
