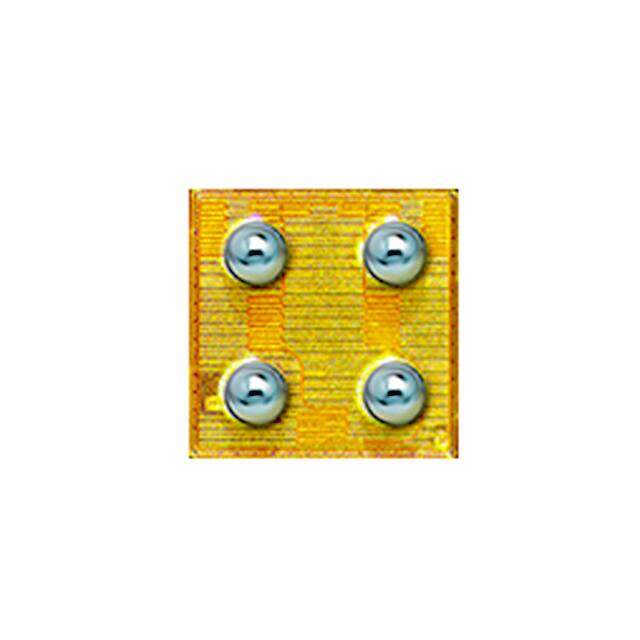

EPC2035
RoHS
RoHS compliant
RoHS compliantPackage Die
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
GANFET TRANS 60V 1A BUMPED DIE
PDF
/
Buying Options
Total Price: USD $1.21
Unit Price: USD $1.2056
≥1 USD $1.2056
≥10 USD $0.98384
≥100 USD $0.765248
≥500 USD $0.648648
≥1000 USD $0.528387
Inventory: 581
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Rds On Max 45 mΩ
Input Capacitance 115pF
Continuous Drain Current (ID) 1A
Vgs (Max) +6V, -4V
Drive Voltage (Max Rds On,Min Rds On) 5V
Drain to Source Voltage (Vdss) 60V
Gate Charge (Qg) (Max) @ Vgs 1.15nC @ 5V
Current - Continuous Drain (Id) @ 25°C 1A Ta
Input Capacitance (Ciss) (Max) @ Vds 115pF @ 30V
Vgs(th) (Max) @ Id 2.5V @ 800μA
Rds On (Max) @ Id, Vgs 45mOhm @ 1A, 5V
FET Type N-Channel
Technology GaNFET (Gallium Nitride)
Min Operating Temperature -40°C
Max Operating Temperature 150°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series eGaN?
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C TJ
Physical
Supplier Device Package Die
Package / Case Die
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
