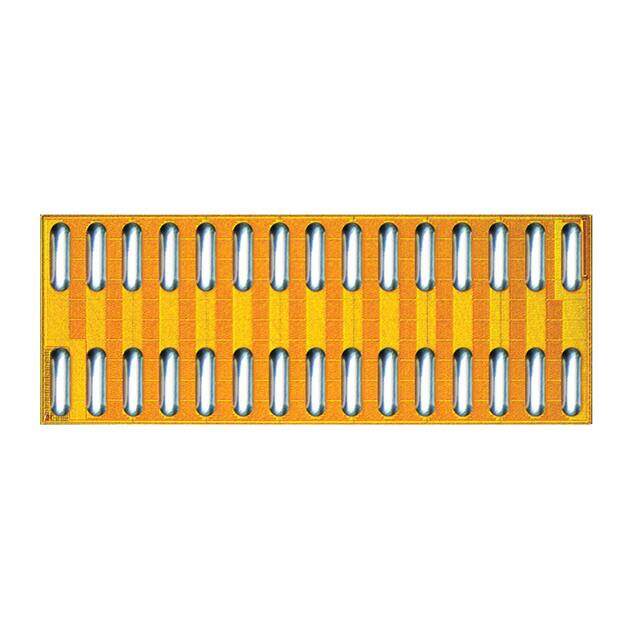

EPC2024
RoHS
RoHS compliant
RoHS compliantPackage Die
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
GANFET NCH 40V 60A DIE
PDF
/
Buying Options
Total Price: USD $7.17
Unit Price: USD $7.172
≥1 USD $7.172
≥10 USD $6.1468
≥100 USD $5.122128
Inventory: 3472
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Die
Supplier Device Package Die
Technical
Operating Temperature -40°C~150°C TJ
Packaging Tape & Reel (TR)
Published 2012
Series eGaN?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 150°C
Min Operating Temperature -40°C
Technology GaNFET (Gallium Nitride)
FET Type N-Channel
Rds On (Max) @ Id, Vgs 1.5mOhm @ 37A, 5V
Vgs(th) (Max) @ Id 2.5V @ 19mA
Input Capacitance (Ciss) (Max) @ Vds 2100pF @ 20V
Current - Continuous Drain (Id) @ 25°C 60A Ta
Drain to Source Voltage (Vdss) 40V
Drive Voltage (Max Rds On,Min Rds On) 5V
Vgs (Max) +6V, -4V
Continuous Drain Current (ID) 60A
Input Capacitance 2.1nF
Rds On Max 1.5 mΩ
Compliance
RoHS Status ROHS3 Compliant
