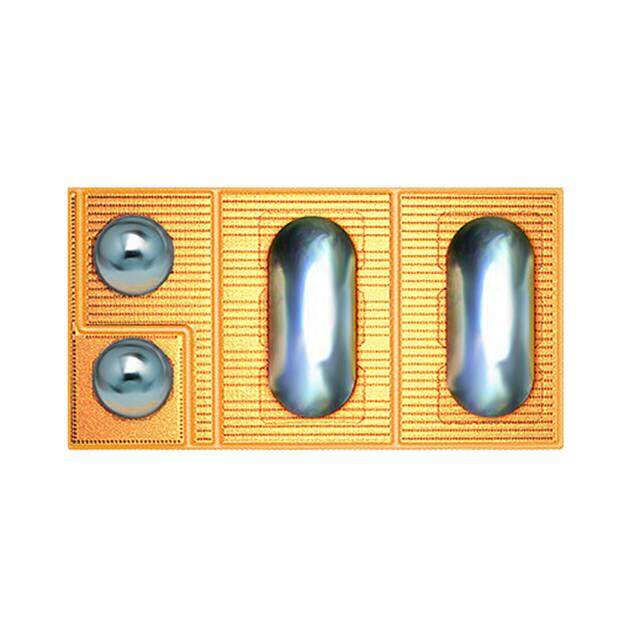

EPC2012
RoHS
RoHS compliant
RoHS compliantPackage Die
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
TRANS GAN 200V 3A BUMPED DIE
PDF
/
Inventory: 6243
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Rds On Max 100 mΩ
Input Capacitance 145pF
Continuous Drain Current (ID) 3A
Vgs (Max) +6V, -5V
Drive Voltage (Max Rds On,Min Rds On) 5V
Drain to Source Voltage (Vdss) 200V
Gate Charge (Qg) (Max) @ Vgs 1.8nC @ 5V
Current - Continuous Drain (Id) @ 25°C 3A Ta
Input Capacitance (Ciss) (Max) @ Vds 145pF @ 100V
Vgs(th) (Max) @ Id 2.5V @ 1mA
Rds On (Max) @ Id, Vgs 100mOhm @ 3A, 5V
FET Type N-Channel
Technology GaNFET (Gallium Nitride)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Series eGaN?
Published 2012
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C TJ
Physical
Supplier Device Package Die
Package / Case Die
Mounting Type Surface Mount
Mount Surface Mount
