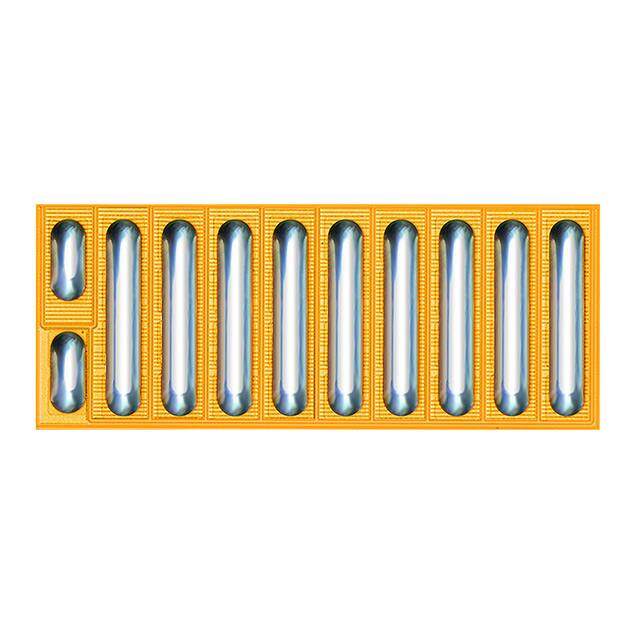

EPC2001C
RoHS
RoHS compliant
RoHS compliantPackage Die
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
GANFET TRANS 100V 36A BUMPED DIE
PDF
/
Buying Options
Total Price: USD $5.37
Unit Price: USD $5.37035
≥1 USD $5.37035
≥10 USD $4.4061
≥100 USD $4.26835
≥500 USD $4.1306
≥1000 USD $3.99285
≥3000 USD $3.58055
Inventory: 22238
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Rds On Max 7 mΩ
Input Capacitance 900pF
Continuous Drain Current (ID) 36A
Vgs (Max) +6V, -4V
Drive Voltage (Max Rds On,Min Rds On) 5V
Drain to Source Voltage (Vdss) 100V
Gate Charge (Qg) (Max) @ Vgs 9nC @ 5V
Current - Continuous Drain (Id) @ 25°C 36A Ta
Input Capacitance (Ciss) (Max) @ Vds 900pF @ 50V
Vgs(th) (Max) @ Id 2.5V @ 5mA
Rds On (Max) @ Id, Vgs 7mOhm @ 25A, 5V
FET Type N-Channel
Technology GaNFET (Gallium Nitride)
Min Operating Temperature -40°C
Max Operating Temperature 150°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series eGaN?
Published 2014
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C TJ
Physical
Supplier Device Package Die Outline (11-Solder Bar)
Package / Case Die
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
