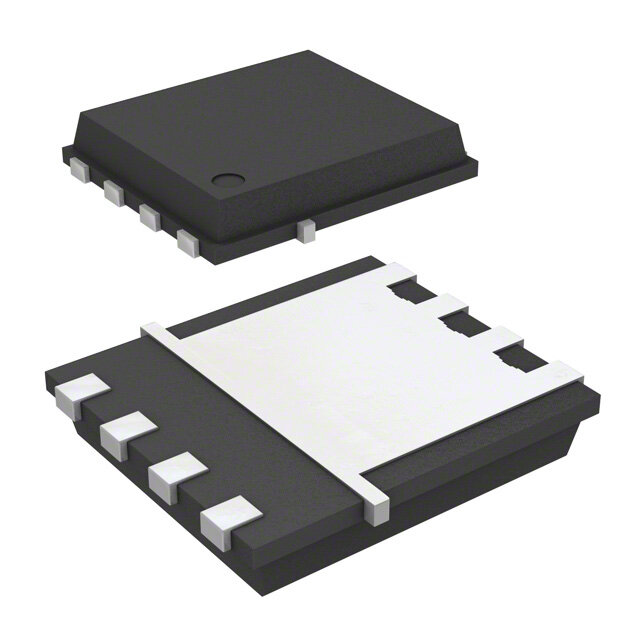

DMP22M2UPS-13
RoHS
RoHS compliant
RoHS compliantPackage 8-PowerTDFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET P-CH 20V POWERDI5060-8
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.5529
≥1 USD $0.5529
≥10 USD $0.4541
≥100 USD $0.43985
≥500 USD $0.4256
≥1000 USD $0.41135
Inventory: 40007
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
DS Breakdown Voltage-Min 20V
Pulsed Drain Current-Max (IDM) 100A
Drain-source On Resistance-Max 0.0025Ohm
Continuous Drain Current (ID) 60A
Vgs (Max) ±12V
Drive Voltage (Max Rds On,Min Rds On) 2.5V 10V
Drain to Source Voltage (Vdss) 20V
Gate Charge (Qg) (Max) @ Vgs 476nC @ 10V
Current - Continuous Drain (Id) @ 25°C 60A Tc
Input Capacitance (Ciss) (Max) @ Vds 12826pF @ 10V
Vgs(th) (Max) @ Id 1.4V @ 250μA
Rds On (Max) @ Id, Vgs 2.5m Ω @ 25A, 10V
Transistor Application SWITCHING
FET Type P-Channel
Case Connection DRAIN
Operating Mode ENHANCEMENT MODE
Power Dissipation-Max 2.3W Ta
Configuration SINGLE WITH BUILT-IN DIODE
Number of Elements 1
JESD-30 Code R-PDSO-F5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code not_compliant
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form FLAT
Terminal Position DUAL
Technology MOSFET (Metal Oxide)
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C TJ
Physical
Transistor Element Material SILICON
Number of Pins 8
Package / Case 8-PowerTDFN
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 23 Weeks
