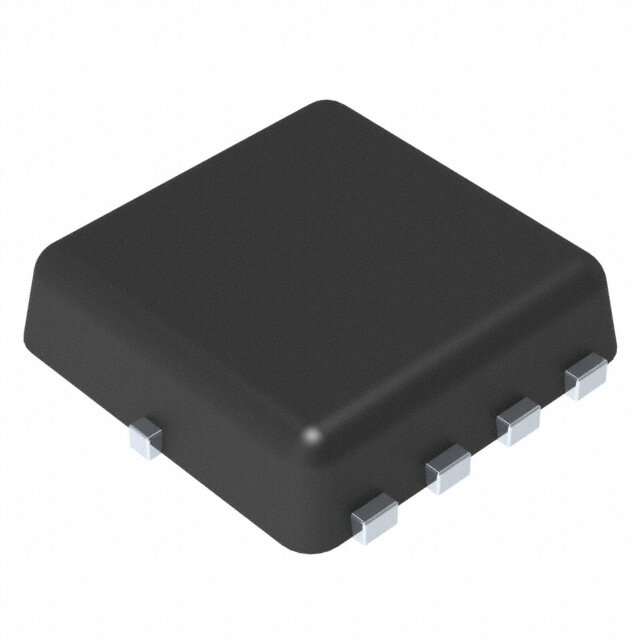

CMS32P03V8-HF
RoHS
RoHS compliant
RoHS compliantPackage 8-PowerWDFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET P-CH -30VDS 20VGS -7.7A P
PDF
/
Inventory: 3189
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 4.5V 10V
Drain to Source Voltage (Vdss) 30V
Gate Charge (Qg) (Max) @ Vgs 12.5nC @ 4.5V
Current - Continuous Drain (Id) @ 25°C 7.7A Ta 32A Tc
Input Capacitance (Ciss) (Max) @ Vds 1345pF @ 15V
Vgs(th) (Max) @ Id 2.5V @ 250μA
Rds On (Max) @ Id, Vgs 20m Ω @ 15A, 10V
FET Type P-Channel
Power Dissipation-Max 1.6W Ta 29W Tc
Technology MOSFET (Metal Oxide)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C TJ
Physical
Package / Case 8-PowerWDFN
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
