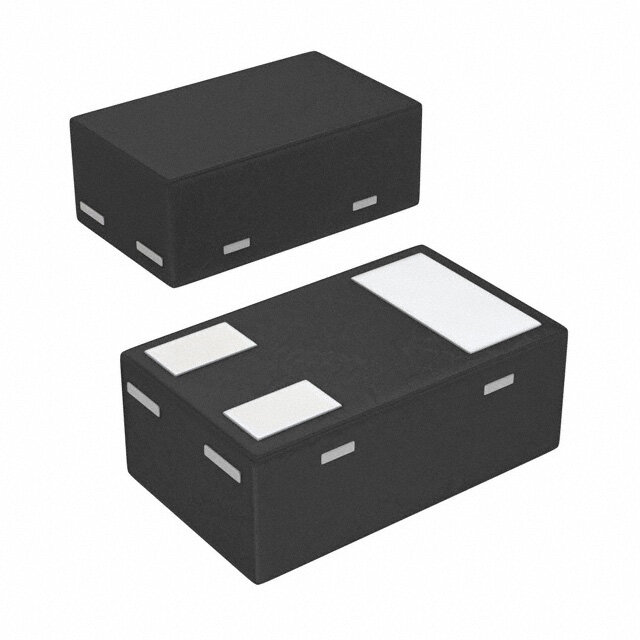

CEDM7002AE TR PBFREE
RoHS
RoHS compliant
RoHS compliantPackage SC-101, SOT-883
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET NCH 60V 0.3A SOT883
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3256
≥1 USD $0.3256
≥10 USD $0.25168
≥100 USD $0.151184
≥500 USD $0.13999
≥1000 USD $0.09519
≥3000 USD $0.08763
Inventory: 1092
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Vgs (Max) 20V
Drive Voltage (Max Rds On,Min Rds On) 2.5V 10V
Drain to Source Voltage (Vdss) 60V
Gate Charge (Qg) (Max) @ Vgs 0.5nC @ 4.5V
Current - Continuous Drain (Id) @ 25°C 300mA Ta
Input Capacitance (Ciss) (Max) @ Vds 50pF @ 25V
Vgs(th) (Max) @ Id 2V @ 250μA
Rds On (Max) @ Id, Vgs 1.4 Ω @ 500mA, 10V
FET Type N-Channel
Power Dissipation-Max 100mW Ta
Technology MOSFET (Metal Oxide)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Cut Tape (CT)
Operating Temperature -65°C~150°C TJ
Physical
Package / Case SC-101, SOT-883
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 20 Weeks
