RoHS
RoHS compliant

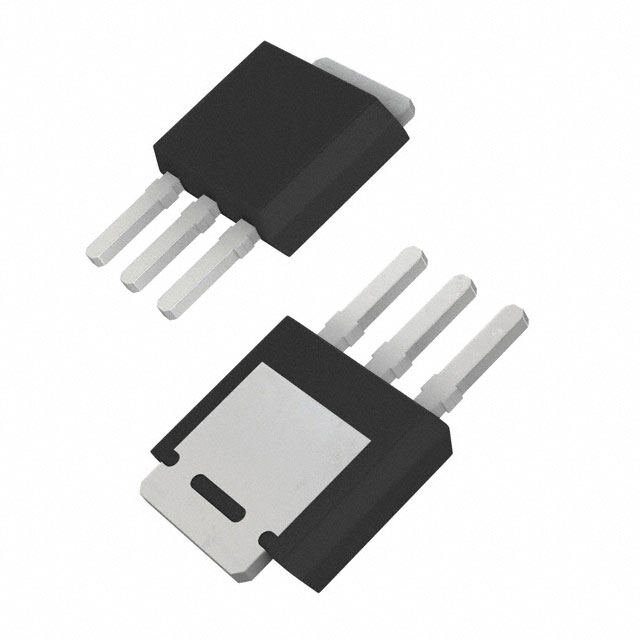

RoHS compliantPackage TO-251-3 Stub Leads, IPak
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET P-CH
PDF
/
Inventory: 3339
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-251-3 Stub Leads, IPak
Supplier Device Package TO-251B
Technical
Operating Temperature -55°C~175°C TJ
Packaging Tube
Published 2012
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 175°C
Min Operating Temperature -55°C
Technology MOSFET (Metal Oxide)
Power Dissipation-Max 2.5W Ta 90W Tc
FET Type P-Channel
Rds On (Max) @ Id, Vgs 6.7mOhm @ 20A, 20V
Vgs(th) (Max) @ Id 3.5V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 2760pF @ 15V
Current - Continuous Drain (Id) @ 25°C 15A Ta 70A Tc
Gate Charge (Qg) (Max) @ Vgs 65nC @ 10V
Drain to Source Voltage (Vdss) 30V
Drive Voltage (Max Rds On,Min Rds On) 10V 20V
Vgs (Max) ±25V
Continuous Drain Current (ID) 70A
Input Capacitance 2.76nF
Rds On Max 6.7 mΩ
Compliance
RoHS Status ROHS3 Compliant
