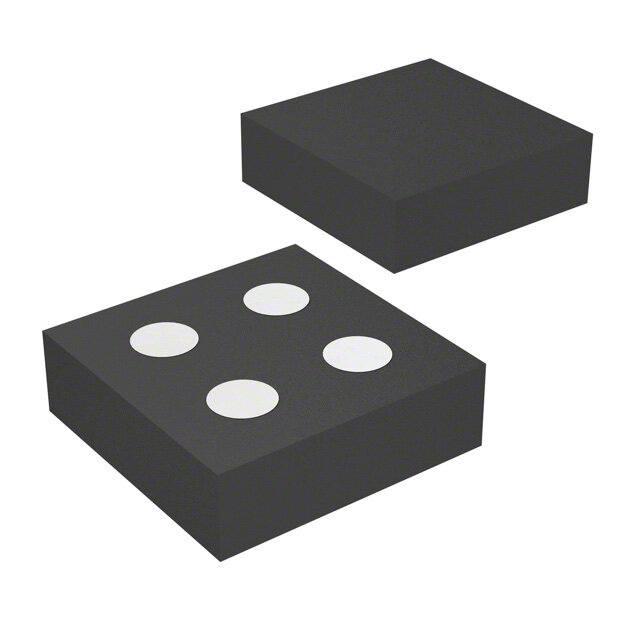

AOC2401
RoHS
/
Package 4-SMD, No Lead
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET P-CH 30V 3A 4WLCSP
PDF
/
Inventory: 9133
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Continuous Drain Current (ID) 3A
Vgs (Max) ±12V
Drive Voltage (Max Rds On,Min Rds On) 2.5V 10V
Drain to Source Voltage (Vdss) 30V
Gate Charge (Qg) (Max) @ Vgs 40nC @ 10V
Current - Continuous Drain (Id) @ 25°C 3A Ta
Input Capacitance (Ciss) (Max) @ Vds 1327pF @ 15V
Vgs(th) (Max) @ Id 1.3V @ 250μA
Rds On (Max) @ Id, Vgs 41m Ω @ 1.5A, 10V
FET Type P-Channel
Power Dissipation-Max 550mW Ta
Technology MOSFET (Metal Oxide)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C TJ
Physical
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
