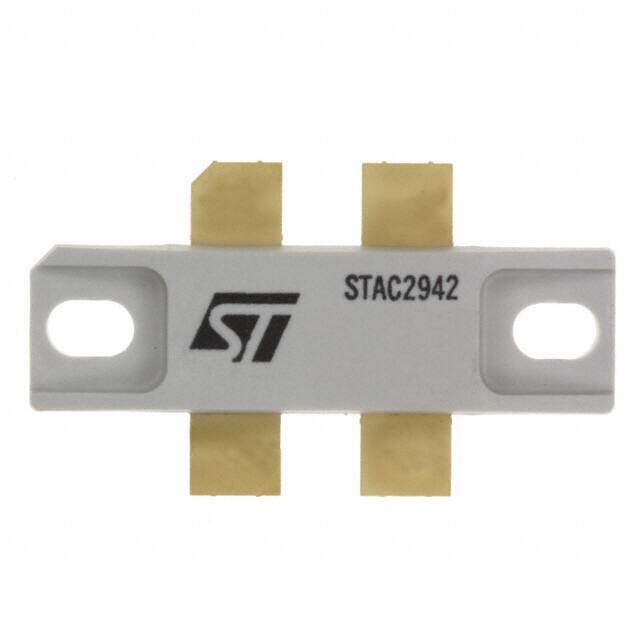

STAC2942B
RoHS
RoHS compliant
RoHS compliantPackage STAC244F
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - RF
Description
MOSFET,N CH,RF,350W,250MHZ,STAC244B - More Details
PDF
/
Inventory: 3784
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 9.78mm
Length 34.04mm
Height 5.33mm
Technical
Voltage - Test 50V
FET Technology METAL-OXIDE SEMICONDUCTOR
Max Output Power 450W
Gain 21 dB
Gate to Source Voltage (Vgs) 20V
Continuous Drain Current (ID) 40A
Transistor Type N-Channel
Drain to Source Voltage (Vdss) 130V
Current - Test 250mA
Case Connection SOURCE
Operating Mode ENHANCEMENT MODE
Element Configuration Dual
Number of Elements 2
Qualification Status Not Qualified
Pin Count 4
Base Part Number STAC294
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 175MHz
Current Rating 40A
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form FLAT
Max Power Dissipation 625W
Subcategory FET General Purpose Power
Min Operating Temperature -65°C
Max Operating Temperature 150°C
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Packaging Tray
Physical
Number of Pins 4
Package / Case STAC244F
Mount Screw
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 8 months ago)
