SD57120
RoHS
RoHS compliant
RoHS compliantPackage M252
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - RF
Description

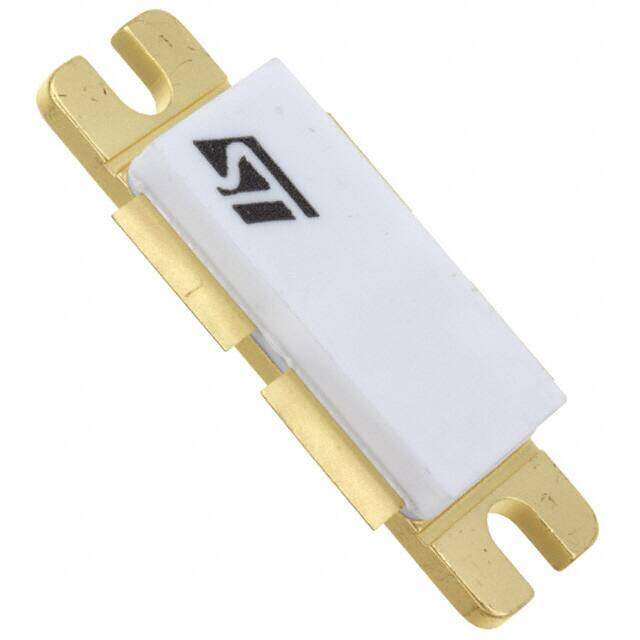

Trans RF MOSFET N-CH 65V 14A 5-Pin Case M-252 Tube
PDF
/
Inventory: 1315
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Lifecycle Status NRND (Last Updated: 8 months ago)
Physical
Mount Screw
Package / Case M252
Number of Pins 5
Technical
Packaging Tube
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Max Operating Temperature 200°C
Min Operating Temperature -65°C
Subcategory FET General Purpose Power
Voltage - Rated DC 65V
Max Power Dissipation 236W
Terminal Form FLAT
Current Rating 14A
Frequency 960MHz
Base Part Number SD57120
Pin Count 2
JESD-30 Code R-PDFM-F4
Number of Elements 2
Element Configuration Dual
Operating Mode ENHANCEMENT MODE
Power Dissipation 236W
Case Connection SOURCE
Current - Test 800mA
Transistor Application AMPLIFIER
Drain to Source Voltage (Vdss) 65V
Polarity/Channel Type N-CHANNEL
Transistor Type LDMOS
Continuous Drain Current (ID) 14A
Gate to Source Voltage (Vgs) 20V
Gain 14dB
Max Output Power 120W
Drain to Source Breakdown Voltage 65V
Input Capacitance 169pF
FET Technology METAL-OXIDE SEMICONDUCTOR
Voltage - Test 28V
Min Breakdown Voltage 65V
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
