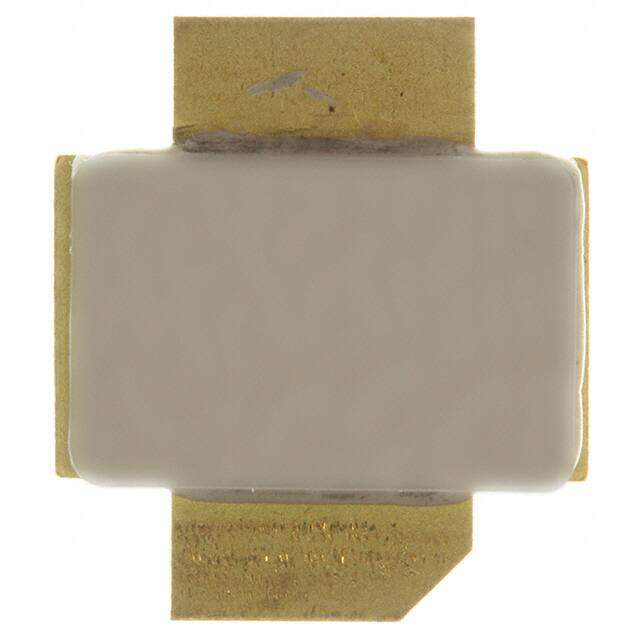

SD57060-01
RoHS
RoHS compliant
RoHS compliantPackage M250
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - RF
Description
Trans RF MOSFET N-CH 65V 7A 3-Pin Case M-250
PDF
/
Inventory: 3165
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Technical
Min Breakdown Voltage 65V
Voltage - Test 28V
FET Technology METAL-OXIDE SEMICONDUCTOR
Input Capacitance 88pF
Drain to Source Breakdown Voltage 65V
Drain Current-Max (Abs) (ID) 7A
Max Output Power 60W
Gain 15dB
Gate to Source Voltage (Vgs) 20V
Continuous Drain Current (ID) 7A
Transistor Type LDMOS
Polarity/Channel Type N-CHANNEL
Drain to Source Voltage (Vdss) 65V
Transistor Application AMPLIFIER
Current - Test 100mA
Case Connection SOURCE
Power Dissipation 108W
Operating Mode ENHANCEMENT MODE
Element Configuration Single
Number of Elements 1
Qualification Status Not Qualified
JESD-30 Code R-PDFP-F2
Pin Count 2
Base Part Number SD57060
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 945MHz
Current Rating 7A
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form FLAT
Terminal Position DUAL
Max Power Dissipation 108W
Voltage - Rated DC 65V
Subcategory FET General Purpose Power
Min Operating Temperature -65°C
Max Operating Temperature 200°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Packaging Bulk
Physical
Number of Pins 250
Package / Case M250
Mount Surface Mount
Supply Chain
Lifecycle Status NRND (Last Updated: 8 months ago)
Alternative Model
