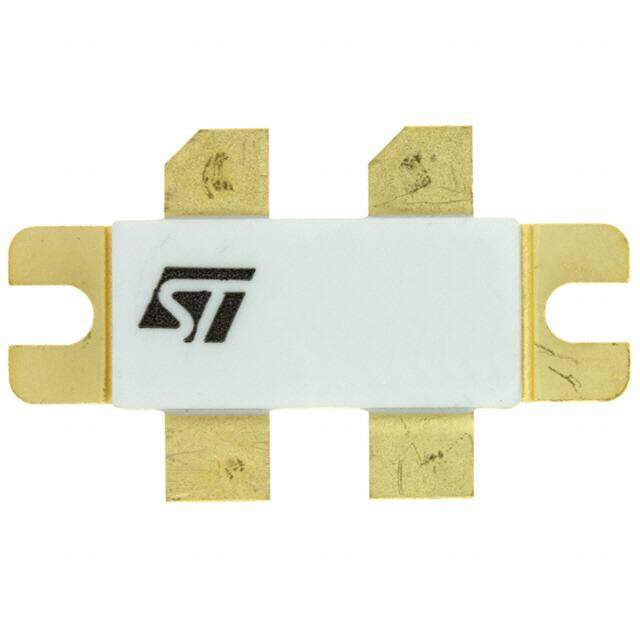

SD3932
RoHS
RoHS compliant
RoHS compliantPackage M244
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - RF
Description
Trans RF MOSFET N-CH 250V 20A 5-Pin Case M-244 Tube
PDF
/
Inventory: 1663
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Voltage - Test 100V
FET Technology METAL-OXIDE SEMICONDUCTOR
Drain to Source Breakdown Voltage 250V
Max Output Power 425W
Gain 26.8dB
Gate to Source Voltage (Vgs) 20V
Continuous Drain Current (ID) 20A
Transistor Type 2 N-Channel (Dual)
Drain to Source Voltage (Vdss) 250V
Transistor Application AMPLIFIER
Current - Test 250mA
Case Connection SOURCE
Power Dissipation 500W
Operating Mode ENHANCEMENT MODE
Element Configuration Dual
Number of Elements 2
JESD-30 Code R-PDFM-F4
Pin Count 4
Base Part Number SD3932
Frequency 123MHz
Current Rating 20A
Terminal Form FLAT
Max Power Dissipation 500W
Subcategory FET General Purpose Power
Min Operating Temperature -65°C
Max Operating Temperature 200°C
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Packaging Tray
Physical
Number of Pins 5
Package / Case M244
Mount Screw, Surface Mount
Supply Chain
Factory Lead Time 32 Weeks
