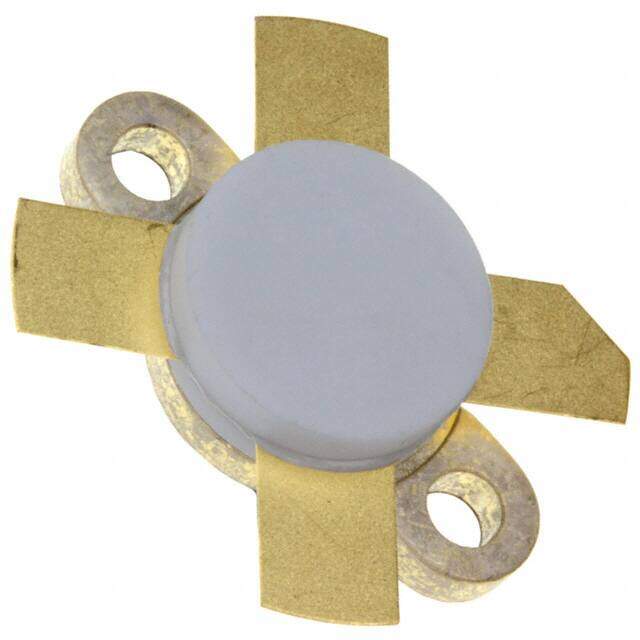

SD2941-10
RoHS
RoHS compliant
RoHS compliantPackage M174
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - RF
Description
TRANS RF N-CH HF/VHF/UHF M174
PDF
/
Inventory: 7343
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Power Gain 15.8dB
Voltage - Test 50V
FET Technology METAL-OXIDE SEMICONDUCTOR
Power - Output 175W
Input Capacitance 415pF
Drain to Source Breakdown Voltage 130V
Max Output Power 200W
Gate to Source Voltage (Vgs) 20V
Continuous Drain Current (ID) 20A
Transistor Type N-Channel
Drain to Source Voltage (Vdss) 130V
Current - Test 250mA
Case Connection SOURCE
Power Dissipation 389W
Operating Mode ENHANCEMENT MODE
Element Configuration Single
Number of Elements 1
JESD-30 Code O-PRFM-F4
Pin Count 4
Base Part Number SD2941
Frequency 175MHz
Current Rating 20A
Terminal Form FLAT
Terminal Position RADIAL
Max Power Dissipation 389W
Voltage - Rated DC 130V
Subcategory FET General Purpose Power
Min Operating Temperature -65°C
Max Operating Temperature 200°C
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Packaging Bulk
Physical
Number of Pins 174
Package / Case M174
Mount Screw
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 8 months ago)
