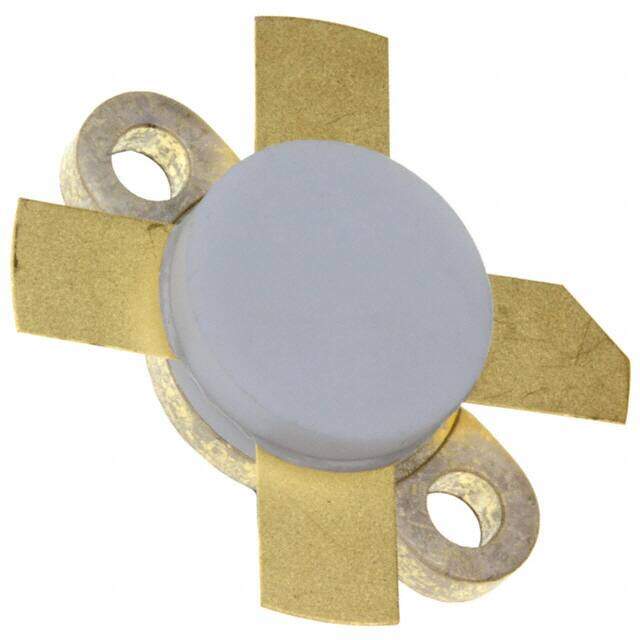

SD2931-10W
RoHS
RoHS compliant
RoHS compliantPackage M174
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - RF
Description
Trans RF MOSFET N-CH 125V 20A 4-Pin Case M-174 Tray
PDF
/
Buying Options
Total Price: USD $67.12
Unit Price: USD $67.116061
≥1 USD $67.116061
≥10 USD $63.317039
≥100 USD $59.733051
≥500 USD $56.351928
≥1000 USD $53.162202
Inventory: 1543
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Technical
Voltage - Test 50V
FET Technology METAL-OXIDE SEMICONDUCTOR
Power - Output 150W
Drain to Source Breakdown Voltage 125V
Gain 15dB
Gate to Source Voltage (Vgs) 20V
Continuous Drain Current (ID) 20A
Transistor Type N-Channel
Drain to Source Voltage (Vdss) 125V
Current - Test 250mA
Power Dissipation 389W
Operating Mode ENHANCEMENT MODE
Element Configuration Single
Number of Elements 1
Base Part Number SD2931
Frequency 175MHz
Current Rating 20A
Terminal Form FLAT
Terminal Position RADIAL
Max Power Dissipation 389W
Subcategory FET General Purpose Power
Min Operating Temperature -65°C
Max Operating Temperature 150°C
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Packaging Tray
Physical
Number of Pins 4
Package / Case M174
Mount Screw
Supply Chain
Factory Lead Time 32 Weeks
