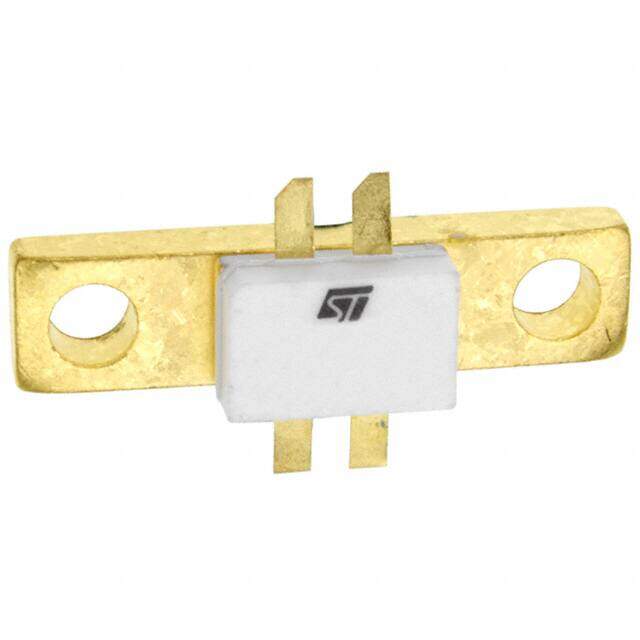

SD2903
RoHS
RoHS compliant
RoHS compliantPackage M229
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - RF
Description
Trans RF MOSFET N-CH 65V 5A 5-Pin Case M-229
PDF
/
Inventory: 1834
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Technical
Voltage - Test 28V
FET Technology METAL-OXIDE SEMICONDUCTOR
Input Capacitance 23pF
Drain to Source Breakdown Voltage 65V
Drain Current-Max (Abs) (ID) 5A
Max Output Power 30W
Gain 15dB
Gate to Source Voltage (Vgs) 20V
Continuous Drain Current (ID) 5A
Transistor Type N-Channel
Drain to Source Voltage (Vdss) 65V
Transistor Application AMPLIFIER
Current - Test 100mA
Case Connection SOURCE
Power Dissipation 100W
Operating Mode ENHANCEMENT MODE
Element Configuration Dual
Number of Elements 2
Qualification Status Not Qualified
JESD-30 Code R-PDFM-F4
Pin Count 5
Base Part Number SD2903
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 400MHz
Current Rating 5A
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form FLAT
Max Power Dissipation 100W
Voltage - Rated DC 65V
Subcategory FET General Purpose Power
Min Operating Temperature -65°C
Max Operating Temperature 150°C
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Packaging Bulk
Physical
Number of Pins 229
Package / Case M229
Mount Surface Mount
