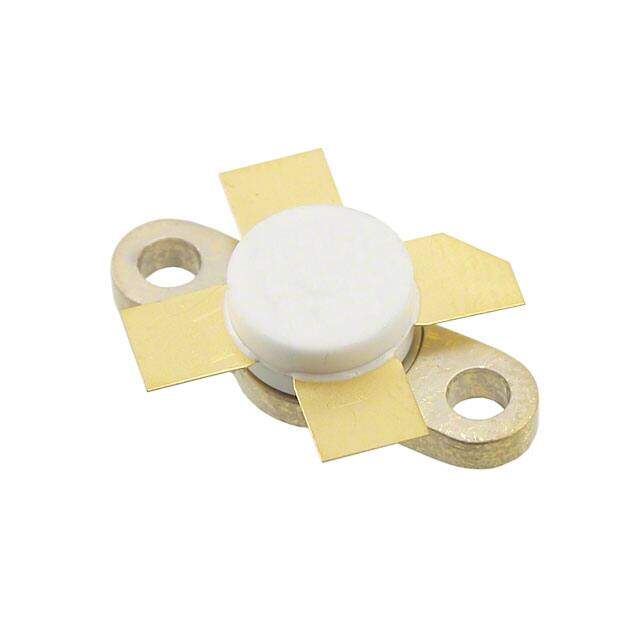

SD2902
RoHS
RoHS compliant
RoHS compliantPackage M113
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - RF
Description
Trans RF MOSFET N-CH 65V 2.5A 4-Pin Case M-113
PDF
/
Buying Options
Total Price: USD $49.77
Unit Price: USD $49.76955
≥1 USD $49.76955
≥10 USD $40.8367
≥100 USD $39.5599
≥500 USD $38.28405
≥1000 USD $37.0082
Inventory: 1318
Minimum: 1
-
+
Technical Details
Physical
Mount Screw
Package / Case M113
Number of Pins 113
Technical
Packaging Bulk
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Max Operating Temperature 150°C
Min Operating Temperature -65°C
Subcategory FET General Purpose Power
Voltage - Rated DC 65V
Max Power Dissipation 58.3W
Terminal Position RADIAL
Terminal Form FLAT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Current Rating 2.5A
Frequency 400MHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number SD2902
Pin Count 4
JESD-30 Code O-PRFM-F4
Qualification Status Not Qualified
Number of Elements 1
Element Configuration Single
Operating Mode ENHANCEMENT MODE
Power Dissipation 58.3W
Current - Test 25mA
Transistor Application AMPLIFIER
Drain to Source Voltage (Vdss) 65V
Transistor Type N-Channel
Continuous Drain Current (ID) 2.5A
Gate to Source Voltage (Vgs) 20V
Gain 13.5dB
Max Output Power 15W
Drain to Source Breakdown Voltage 65V
Input Capacitance 23pF
FET Technology METAL-OXIDE SEMICONDUCTOR
Voltage - Test 28V
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
