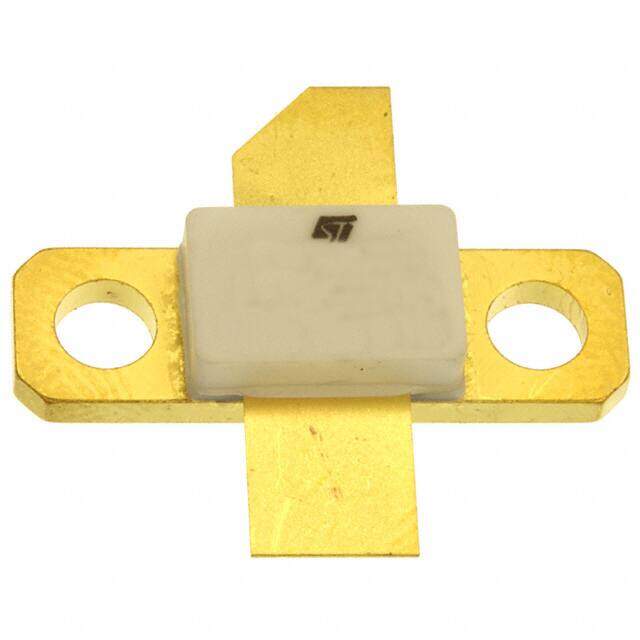

PD85035C
RoHS
RoHS compliant
RoHS compliantPackage M243
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - RF
Description
Trans RF MOSFET N-CH 40V 8A 3-Pin Case M-243 Box
PDF
/
Inventory: 4989
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Voltage - Test 13.6V
FET Technology METAL-OXIDE SEMICONDUCTOR
Power - Output 15W
Drain to Source Breakdown Voltage 40V
Drain Current-Max (Abs) (ID) 8A
Gain 17.5dB
Gate to Source Voltage (Vgs) 15V
Continuous Drain Current (ID) 8A
Transistor Type LDMOS
Polarity/Channel Type N-CHANNEL
Drain to Source Voltage (Vdss) 40V
Transistor Application AMPLIFIER
Current - Test 350mA
Case Connection SOURCE
Power Dissipation 108W
Operating Mode ENHANCEMENT MODE
Element Configuration Single
Number of Elements 1
Qualification Status Not Qualified
JESD-30 Code R-CDFM-F3
Pin Count 2
Base Part Number PD85035
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 945MHz
Current Rating 8A
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form FLAT
Terminal Position DUAL
Max Power Dissipation 108W
Subcategory FET General Purpose Power
Min Operating Temperature -65°C
Max Operating Temperature 200°C
Terminal Finish Gold (Au)
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e4
Packaging Bulk
Physical
Number of Pins 243
Package / Case M243
Mount Screw
