PD84008L-E
RoHS
RoHS compliant

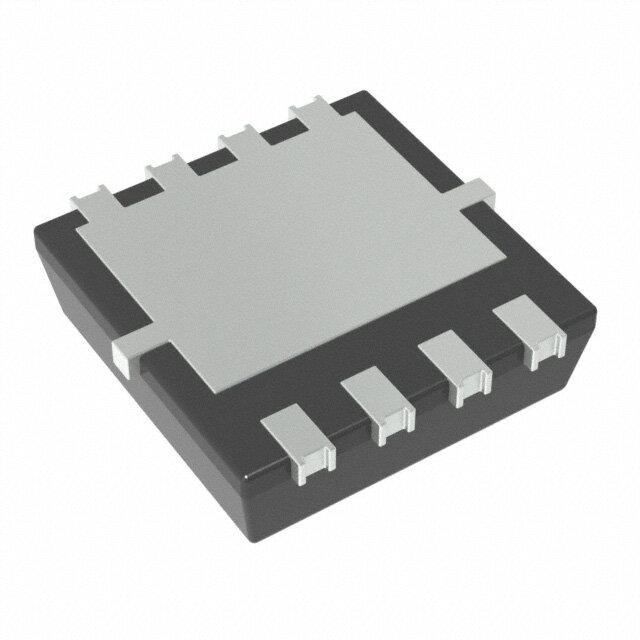

RoHS compliantPackage 8-PowerVDFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - RF
Description
FET RF 25V 870MHZ
PDF
/
Buying Options
Total Price: USD $1.27
Unit Price: USD $1.273389
≥1 USD $1.273389
≥10 USD $1.201313
≥100 USD $1.133306
≥500 USD $1.069162
≥1000 USD $1.008641
Inventory: 9294
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Voltage - Test 7.5V
FET Technology METAL-OXIDE SEMICONDUCTOR
Power - Output 2W
Drain to Source Breakdown Voltage 25V
Drain Current-Max (Abs) (ID) 7A
Gain 15.5dB
Gate to Source Voltage (Vgs) 15V
Continuous Drain Current (ID) 7A
Transistor Type LDMOS
Polarity/Channel Type N-CHANNEL
Drain to Source Voltage (Vdss) 25V
Transistor Application AMPLIFIER
Current - Test 250mA
Case Connection SOURCE
Power Dissipation 26.7W
Operating Mode ENHANCEMENT MODE
Element Configuration Single
Number of Elements 1
JESD-30 Code S-PQCC-N5
Pin Count 14
Base Part Number PD84008
Frequency 870MHz
Current Rating 7A
Peak Reflow Temperature (Cel) 225
Terminal Position QUAD
Max Power Dissipation 26.7W
Subcategory FET General Purpose Power
Min Operating Temperature -65°C
Max Operating Temperature 150°C
Terminal Finish MATTE TIN
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e3
Packaging Cut Tape (CT)
Physical
Number of Pins 8
Package / Case 8-PowerVDFN
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 8 months ago)
Factory Lead Time 11 Weeks
