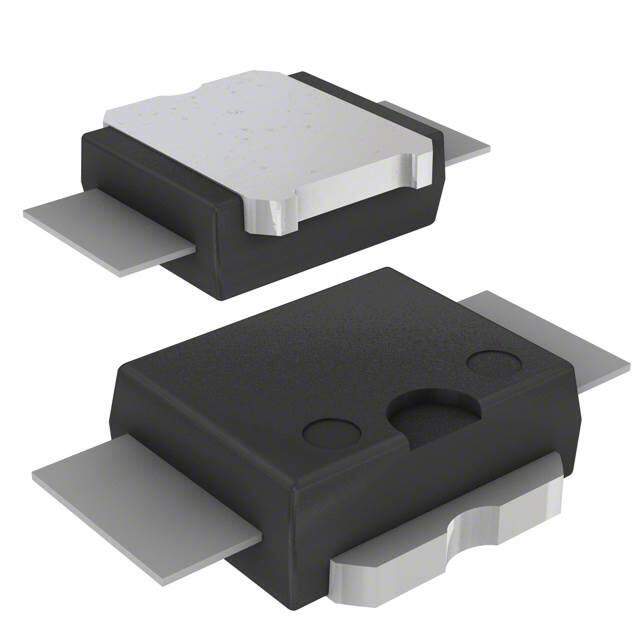

PD55035STR-E
RoHS
RoHS compliant
RoHS compliantPackage PowerSO-10 Exposed Bottom Pad
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - RF
Description
FET RF 40V 500MHZ PWRSO-10
PDF
/
Inventory: 1642
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Voltage - Test 12.5V
FET Technology METAL-OXIDE SEMICONDUCTOR
Power - Output 35W
Drain to Source Breakdown Voltage 40V
Drain Current-Max (Abs) (ID) 7A
Gain 16.9dB
Gate to Source Voltage (Vgs) 20V
Continuous Drain Current (ID) 7A
Transistor Type LDMOS
Polarity/Channel Type N-CHANNEL
Drain to Source Voltage (Vdss) 40V
Transistor Application AMPLIFIER
Current - Test 200mA
Case Connection SOURCE
Power Dissipation 95W
Operating Mode ENHANCEMENT MODE
Element Configuration Single
Number of Elements 1
Qualification Status Not Qualified
JESD-30 Code R-PDSO-F2
Pin Count 10
Base Part Number PD55035
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 500MHz
Current Rating 7A
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form FLAT
Terminal Position DUAL
Max Power Dissipation 95W
Subcategory FET General Purpose Power
Additional Feature HIGH RELIABILITY
Min Operating Temperature -65°C
Max Operating Temperature 165°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Packaging Tape & Reel (TR)
Physical
Number of Pins 4
Package / Case PowerSO-10 Exposed Bottom Pad
Mount Surface Mount
