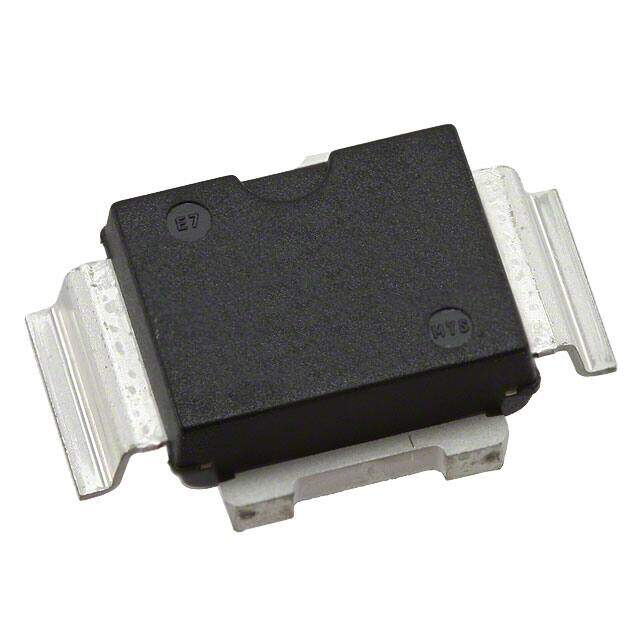

PD55008TR-E
RoHS
RoHS compliant
RoHS compliantPackage PowerSO-10RF Exposed Bottom Pad (2 Formed Leads)
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - RF
Description
TRANSISTOR RF POWERSO-10
PDF
/
Buying Options
Total Price: USD $13.1
Unit Price: USD $13.1032
≥1 USD $13.1032
≥10 USD $12.0384
≥100 USD $11.539616
≥500 USD $10.167256
≥1000 USD $9.668278
Inventory: 83
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 25 Weeks
Physical
Mount Surface Mount
Package / Case PowerSO-10RF Exposed Bottom Pad (2 Formed Leads)
Number of Pins 3
Technical
Packaging Tape & Reel (TR)
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Additional Feature HIGH RELIABILITY
Subcategory FET General Purpose Power
Max Power Dissipation 52.8W
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 250
Current Rating 4A
Frequency 500MHz
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number PD55008
Pin Count 10
JESD-30 Code R-PDSO-G2
Number of Elements 1
Element Configuration Single
Operating Mode ENHANCEMENT MODE
Power Dissipation 52.8W
Case Connection SOURCE
Current - Test 150mA
Transistor Application AMPLIFIER
Drain to Source Voltage (Vdss) 40V
Polarity/Channel Type N-CHANNEL
Transistor Type LDMOS
Continuous Drain Current (ID) 4A
Gate to Source Voltage (Vgs) 20V
Gain 17dB
Max Output Power 8W
Drain Current-Max (Abs) (ID) 4A
Drain to Source Breakdown Voltage 40V
FET Technology METAL-OXIDE SEMICONDUCTOR
Voltage - Test 12.5V
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
