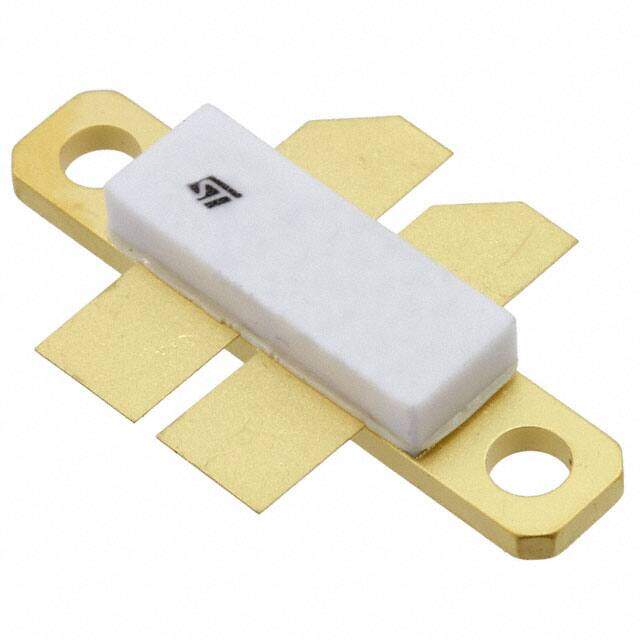

LET9180 image
Favorite
LET9180 image
Favorite
RoHS
RoHS RoHS compliant
Package M246
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - RF
Description IC RF TRANSISTOR LDMOS M246
PDF
/
Inventory: 5711
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Width 5.97mm
Length 29.08mm
Height 5.08mm

Technical

Voltage - Test 32V
Power - Output 175W
Gain 20dB
Continuous Drain Current (ID) 24A
Transistor Type LDMOS
Current - Test 500mA
Element Configuration Single
Base Part Number LET9180
Frequency 860MHz
Current Rating 24A
Max Power Dissipation 318W
Voltage - Rated 80V
Min Operating Temperature -65°C
Max Operating Temperature 200°C
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Packaging Tray

Physical

Number of Pins 246
Package / Case M246
Mount Screw, Surface Mount
