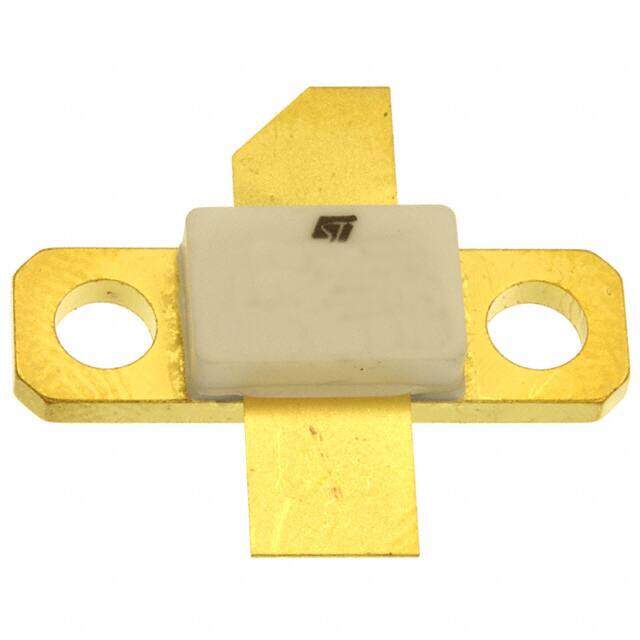

LET16060C
RoHS
RoHS compliant
RoHS compliantPackage M243
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - RF
Description
Trans RF MOSFET N-CH 80V 12A 3-Pin Case M-243
PDF
/
Inventory: 4970
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Voltage - Test 28V
FET Technology METAL-OXIDE SEMICONDUCTOR
Power - Output 60W
Drain to Source Breakdown Voltage 80V
Gain 13.8dB
Gate to Source Voltage (Vgs) 15V
Continuous Drain Current (ID) 12A
Transistor Type LDMOS
Polarity/Channel Type N-CHANNEL
Drain to Source Voltage (Vdss) 80V
Transistor Application AMPLIFIER
Current - Test 400mA
Case Connection SOURCE
Power Dissipation 100W
Operating Mode ENHANCEMENT MODE
Element Configuration Single
Number of Elements 1
JESD-30 Code R-PDFM-F2
Pin Count 2
Base Part Number LET16045
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 1.6GHz
Current Rating 12A
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form FLAT
Terminal Position DUAL
Max Power Dissipation 100W
Subcategory FET General Purpose Powers
Min Operating Temperature -65°C
Max Operating Temperature 150°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Packaging Bulk
Physical
Number of Pins 243
Package / Case M243
Mount Screw
