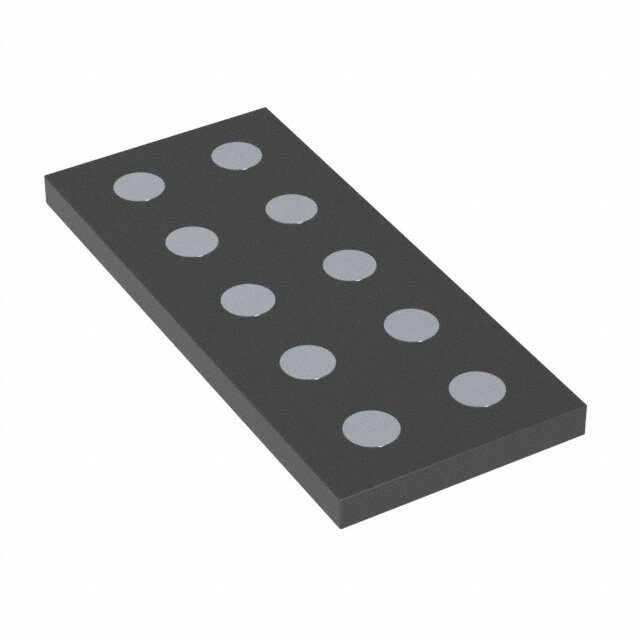

CSD87501LT
RoHS
RoHS compliant
RoHS compliantPackage 10-XFLGA
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Description
MOSFET 2N-CH 30V 10PICOSTAR
PDF
/
Buying Options
Total Price: USD $0.76
Unit Price: USD $0.7568
≥1 USD $0.7568
≥10 USD $0.67232
≥100 USD $0.638528
≥500 USD $0.52448
Inventory: 1193
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Thickness 200μm
Width 1.47mm
Length 3.37mm
Technical
Feedback Cap-Max (Crss) 198 pF
Drain to Source Resistance 6.6mOhm
FET Feature Logic Level Gate
FET Technology METAL-OXIDE SEMICONDUCTOR
Gate to Source Voltage (Vgs) 20V
Threshold Voltage 1.8V
Continuous Drain Current (ID) 14A
Turn-Off Delay Time 709 ns
Fall Time (Typ) 712 ns
Drain to Source Voltage (Vdss) 30V
Rise Time 260ns
Gate Charge (Qg) (Max) @ Vgs 40nC @ 10V
Vgs(th) (Max) @ Id 2.3V @ 250μA
Transistor Application SWITCHING
FET Type 2 N-Channel (Dual) Common Drain
Turn On Delay Time 164 ns
Operating Mode ENHANCEMENT MODE
Configuration COMMON DRAIN, 2 ELEMENTS WITH BUILT-IN DIODE
Number of Elements 2
Base Part Number CSD87501
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position BOTTOM
Max Power Dissipation 2.5W
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series NexFET?
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C TJ
Physical
Transistor Element Material SILICON
Number of Pins 10
Package / Case 10-XFLGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 6 Weeks
