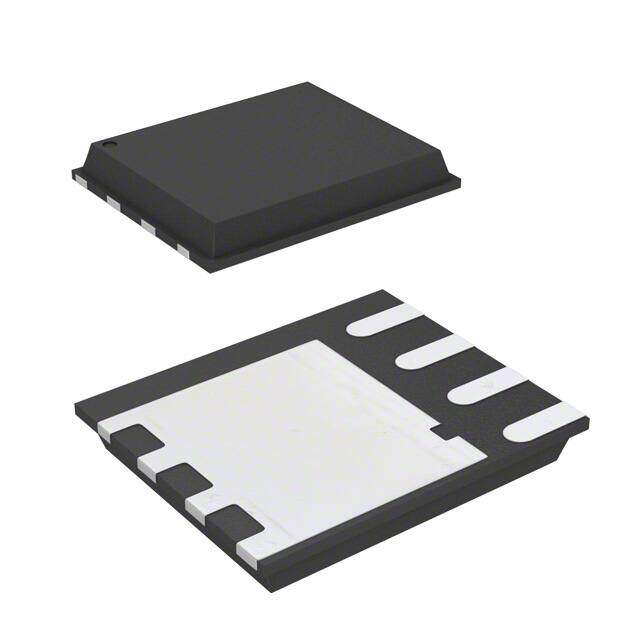

STL40DN3LLH5
RoHS
RoHS compliant
RoHS compliantPackage 8-PowerVDFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Description
MOSFET 2N-CH 30V 40A POWERFLAT56
PDF
/
Buying Options
Total Price: USD $1.24
Unit Price: USD $1.2408
≥1 USD $1.2408
≥10 USD $1.0164
≥100 USD $0.790416
≥500 USD $0.669997
≥1000 USD $0.545794
Inventory: 1156
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-PowerVDFN
Number of Pins 5
Transistor Element Material SILICON
Technical
Operating Temperature -55°C~175°C TJ
Packaging Tape & Reel (TR)
Series STripFET? V
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Resistance 18MOhm
Subcategory FET General Purpose Power
Max Power Dissipation 60W
Terminal Form FLAT
Base Part Number STL40
Pin Count 8
JESD-30 Code R-PDSO-F6
Number of Elements 2
Element Configuration Dual
Operating Mode ENHANCEMENT MODE
Power Dissipation 60W
Case Connection DRAIN
Turn On Delay Time 4 ns
FET Type 2 N-Channel (Dual)
Transistor Application SWITCHING
Rds On (Max) @ Id, Vgs 18m Ω @ 5.5A, 10V
Vgs(th) (Max) @ Id 1.5V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds 475pF @ 25V
Gate Charge (Qg) (Max) @ Vgs 4.5nC @ 4.5V
Rise Time 22 ns
Drain to Source Voltage (Vdss) 30V
Fall Time (Typ) 2.8 ns
Turn-Off Delay Time 13 ns
Continuous Drain Current (ID) 40A
Threshold Voltage 1.5V
Gate to Source Voltage (Vgs) 22V
Drain Current-Max (Abs) (ID) 11A
Drain to Source Breakdown Voltage 30V
Pulsed Drain Current-Max (IDM) 44A
FET Technology METAL-OXIDE SEMICONDUCTOR
FET Feature Standard
Dimensions
Height 850μm
Length 4.75mm
Width 5.75mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
