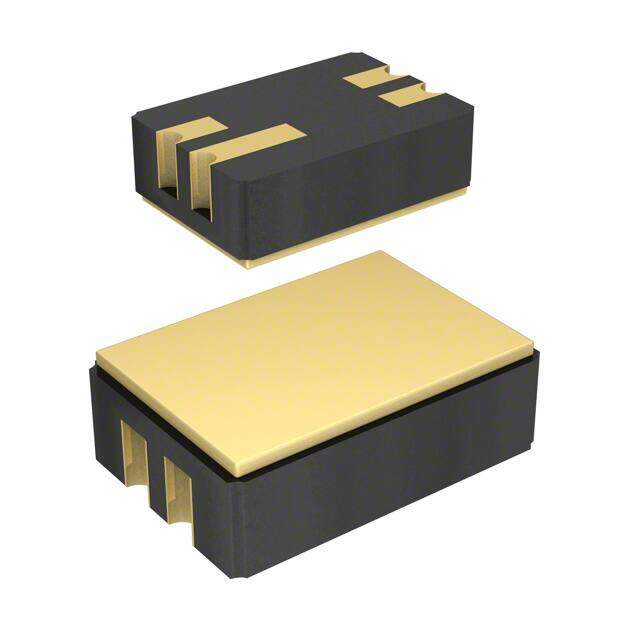

2N2222AUATX
RoHS
/
Package 4-CLCC
Category Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Description
TRANS NPN 50V 0.8A SMT
PDF
/
Inventory: 4032
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 25 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-CLCC
Number of Pins 4
Supplier Device Package 4-CLCC (5.59x3.81)
Technical
Operating Temperature -65°C~200°C TJ
Packaging Bulk
Published 2007
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 200°C
Min Operating Temperature -65°C
Max Power Dissipation 500mW
Power Dissipation 500mW
Power - Max 500mW
Transistor Type NPN
Collector Emitter Voltage (VCEO) 300mV
Max Collector Current 800mA
DC Current Gain (hFE) (Min) @ Ic, Vce 75 @ 1mA 10V
Current - Collector Cutoff (Max) 10nA ICBO
Vce Saturation (Max) @ Ib, Ic 300mV @ 15mA, 150mA
Collector Emitter Breakdown Voltage 50V
Voltage - Collector Emitter Breakdown (Max) 50V
Current - Collector (Ic) (Max) 800mA
Collector Emitter Saturation Voltage 1V
Collector Base Voltage (VCBO) 75V
Emitter Base Voltage (VEBO) 6V
Dimensions
Height 1.905mm
Length 5.715mm
Width 3.937mm
Compliance
RoHS Status Non-RoHS Compliant
