3STR1630
RoHS
RoHS compliant

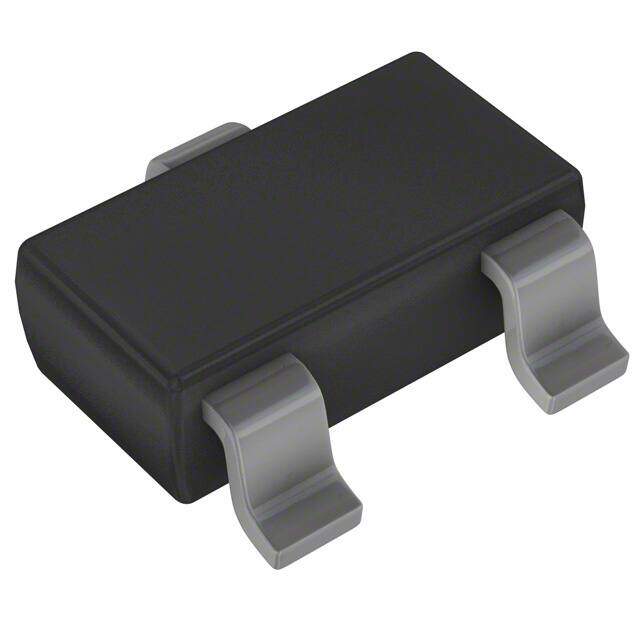

RoHS compliantPackage TO-236-3, SC-59, SOT-23-3
Category Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Description
TRANS NPN 30V 6A SOT-23-3
PDF
/
Buying Options
Total Price: USD $0.23
Unit Price: USD $0.231774
≥1 USD $0.231774
≥10 USD $0.219578
≥100 USD $0.203315
≥500 USD $0.2013
Inventory: 1292
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
hFE Min 260
Emitter Base Voltage (VEBO) 5V
Frequency - Transition 100MHz
Max Breakdown Voltage 30V
Collector Emitter Breakdown Voltage 30V
Vce Saturation (Max) @ Ib, Ic 300mV @ 500mA, 5A
Current - Collector Cutoff (Max) 100nA ICBO
DC Current Gain (hFE) (Min) @ Ic, Vce 180 @ 500mA 2V
Max Collector Current 6A
Collector Emitter Voltage (VCEO) 30V
Transistor Type NPN
Polarity/Channel Type NPN
Transistor Application SWITCHING
Power Dissipation 500mW
Element Configuration Single
Number of Elements 1
Pin Count 3
Base Part Number 3STR16
Terminal Form GULL WING
Terminal Position DUAL
Max Power Dissipation 500mW
Subcategory Other Transistors
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Packaging Tape & Reel (TR)
Operating Temperature 150°C TJ
Physical
Transistor Element Material SILICON
Number of Pins 3
Package / Case TO-236-3, SC-59, SOT-23-3
Mounting Type Surface Mount
Mount Surface Mount
