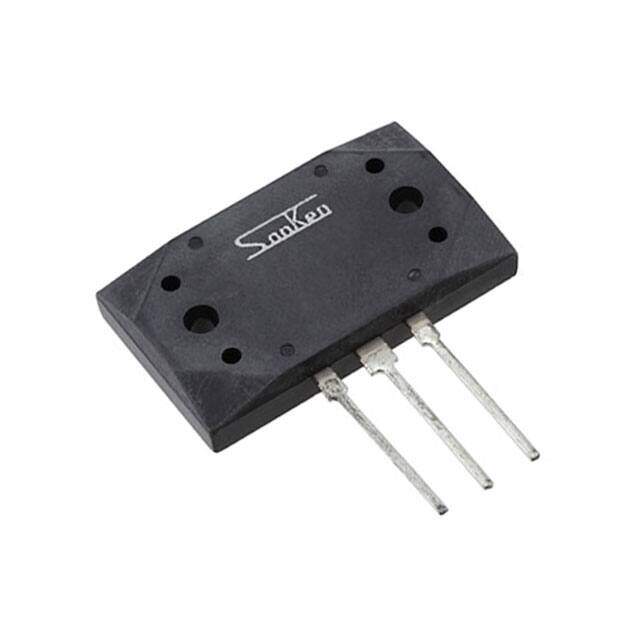

2SC3264
RoHS
/
Package 3-ESIP
Category Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Description
ALLEGRO SANKEN 2SC3264 Bipolar (BJT) Single Transistor, NPN, 230 V, 60 MHz, 200 W, 17 A, 50
PDF
/
Buying Options
Total Price: USD $4.23
Unit Price: USD $4.2294
≥1 USD $4.2294
≥10 USD $3.99
≥100 USD $3.764156
Inventory: 3521
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Power Dissipation-Max (Abs) 200W
Frequency - Transition 60MHz
Transition Frequency 60MHz
Current - Collector (Ic) (Max) 17A
Voltage - Collector Emitter Breakdown (Max) 230V
Vce Saturation (Max) @ Ib, Ic 2V @ 500mA, 5A
Current - Collector Cutoff (Max) 100μA ICBO
DC Current Gain (hFE) (Min) @ Ic, Vce 50 @ 5A 4V
Transistor Type NPN
Polarity/Channel Type NPN
Transistor Application AMPLIFIER
Power - Max 200W
Configuration SINGLE
Number of Elements 1
Qualification Status Not Qualified
Pin Count 3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Subcategory Other Transistors
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Published 1999
Packaging Bulk
Operating Temperature 150°C TJ
Physical
Transistor Element Material SILICON
Number of Pins 3
Surface Mount NO
Package / Case 3-ESIP
Mounting Type Through Hole
Supply Chain
Factory Lead Time 12 Weeks
