2SB1560
RoHS
RoHS compliant
RoHS compliantPackage TO-3P-3, SC-65-3
Category Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Description

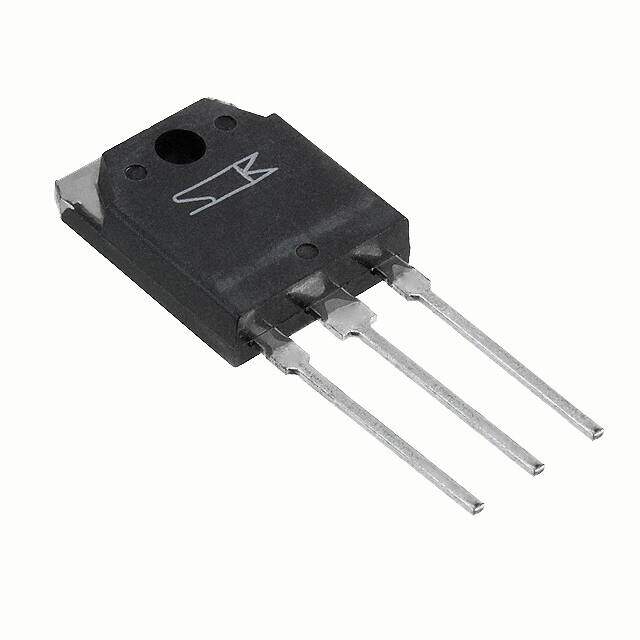

ALLEGRO SANKEN - 2SB1560 - DARLINGTON TRANSISTOR, TO-3P
PDF
/
Buying Options
Total Price: USD $3.06
Unit Price: USD $3.0624
≥1 USD $3.0624
≥10 USD $2.57048
≥100 USD $2.079792
≥500 USD $1.848704
≥1000 USD $1.582953
≥3000 USD $1.490518
Inventory: 394
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Mounting Type Through Hole
Package / Case TO-3P-3, SC-65-3
Surface Mount NO
Number of Pins 3
Transistor Element Material SILICON
Technical
Operating Temperature 150°C TJ
Packaging Bulk
Published 1999
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Additional Feature BUILT IN BIAS RESISTOR
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 3
Qualification Status Not Qualified
Number of Elements 1
Polarity PNP
Configuration SINGLE
Power Dissipation 100W
Transistor Application AMPLIFIER
Transistor Type PNP - Darlington
DC Current Gain (hFE) (Min) @ Ic, Vce 5000 @ 7A 4V
Current - Collector Cutoff (Max) 100μA ICBO
Vce Saturation (Max) @ Ib, Ic 2.5V @ 7mA, 7A
Voltage - Collector Emitter Breakdown (Max) 150V
Current - Collector (Ic) (Max) 10A
Transition Frequency 50MHz
Frequency - Transition 50MHz
