2SCR562F3TR
RoHS
RoHS compliant

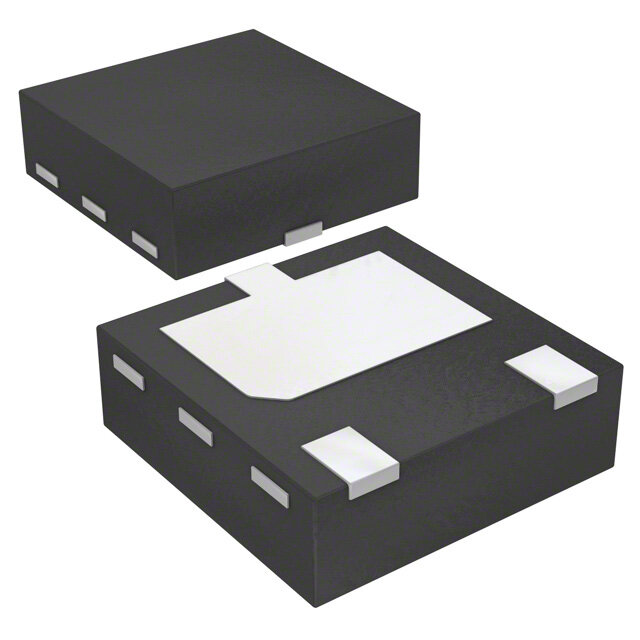

RoHS compliantPackage 3-UDFN Exposed Pad
Category Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Description
NPN DRIVER TRANSISTOR
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.704
≥1 USD $0.704
≥10 USD $0.60632
≥100 USD $0.419936
≥500 USD $0.350891
≥1000 USD $0.298637
Inventory: 731
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Frequency - Transition 270MHz
Transition Frequency 270MHz
Current - Collector (Ic) (Max) 6A
Voltage - Collector Emitter Breakdown (Max) 30V
Vce Saturation (Max) @ Ib, Ic 220mV @ 150mA, 3A
Current - Collector Cutoff (Max) 100nA ICBO
DC Current Gain (hFE) (Min) @ Ic, Vce 200 @ 500mA 2V
Transistor Type NPN
Polarity/Channel Type NPN
Transistor Application SWITCHING
Power - Max 1W
Case Connection COLLECTOR
Configuration SINGLE
Number of Elements 1
JESD-30 Code R-PDSO-N3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position DUAL
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Automotive, AEC-Q101
Packaging Tape & Reel (TR)
Operating Temperature 150°C TJ
Physical
Transistor Element Material SILICON
Surface Mount YES
Package / Case 3-UDFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 20 Weeks
