2SC5103TLQ
RoHS
RoHS compliant
RoHS compliantPackage TO-252-3, DPak (2 Leads + Tab), SC-63
Category Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Description
TRANS NPN 60V 5A SOT-428
PDF
/
Buying Options
Total Price: USD $1.01
Unit Price: USD $1.012
≥1 USD $1.012
≥10 USD $0.82544
≥100 USD $0.642048
≥500 USD $0.544227
≥1000 USD $0.443335
Inventory: 1127
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Technical
Turn Off Time-Max (toff) 1800 ns
Continuous Collector Current 5A
hFE Min 120
Emitter Base Voltage (VEBO) 5V
Collector Base Voltage (VCBO) 100V
Frequency - Transition 120MHz
Max Breakdown Voltage 60V
Transition Frequency 120MHz
Collector Emitter Breakdown Voltage 60V
Vce Saturation (Max) @ Ib, Ic 500mV @ 200mA, 4A
Current - Collector Cutoff (Max) 10μA ICBO
DC Current Gain (hFE) (Min) @ Ic, Vce 120 @ 1A 2V
Max Collector Current 5A
Collector Emitter Voltage (VCEO) 60V
Transistor Type NPN
Polarity/Channel Type NPN
Gain Bandwidth Product 80MHz
Transistor Application SWITCHING
Case Connection COLLECTOR
Power Dissipation 1W
Element Configuration Single
Number of Elements 1
JESD-30 Code R-PSSO-G2
Pin Count 3
Base Part Number 2SC5103
Time@Peak Reflow Temperature-Max (s) 10
Current Rating 5A
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Max Power Dissipation 1W
Voltage - Rated DC 60V
Subcategory Other Transistors
HTS Code 8541.29.00.75
Terminal Finish Tin/Copper (Sn98Cu2)
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Not For New Designs
Pbfree Code yes
JESD-609 Code e2
Published 1997
Packaging Tape & Reel (TR)
Operating Temperature 150°C TJ
Physical
Transistor Element Material SILICON
Number of Pins 3
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Copper, Tin

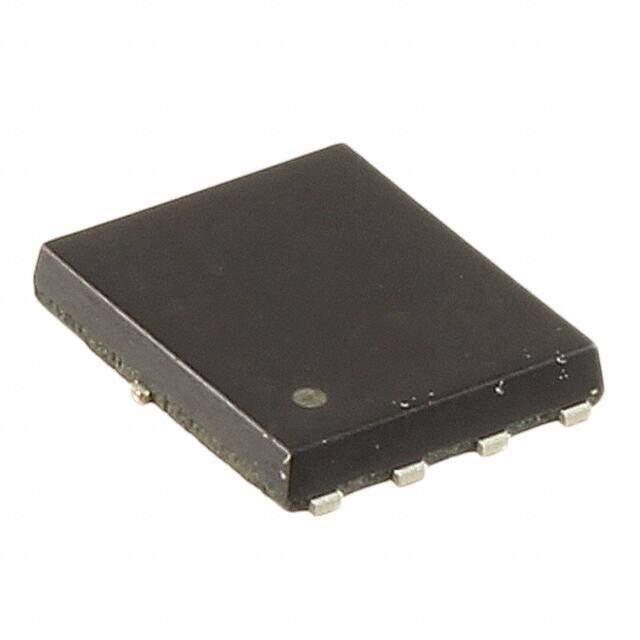

Alternative Model
