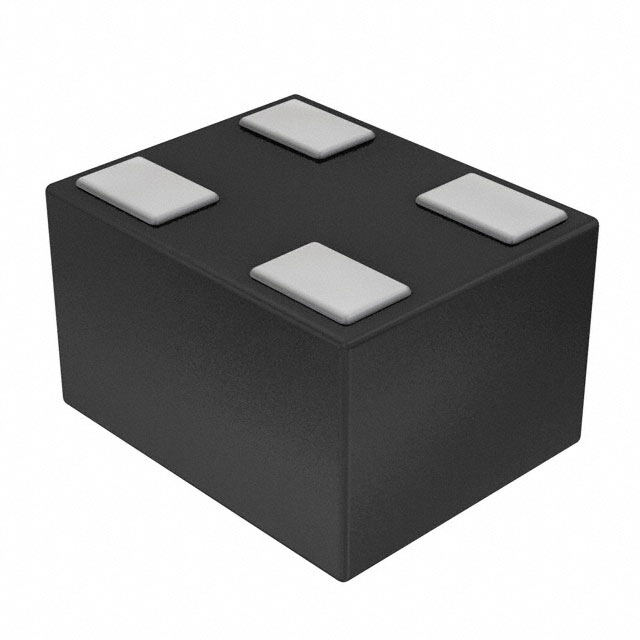

UNRL21300A
RoHS
/
Package SC-103
Category Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single, Pre-Biased
Description
TRANS PREBIAS NPN 150MW ML4-N1
PDF
/
Inventory: 934
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
Resistor - Emitter Base (R2) 47 kOhms
Resistor - Base (R1) 47 kOhms
Frequency - Transition 150MHz
Max Breakdown Voltage 50V
Current - Collector (Ic) (Max) 100mA
Voltage - Collector Emitter Breakdown (Max) 50V
Collector Emitter Breakdown Voltage 50V
Vce Saturation (Max) @ Ib, Ic 250mV @ 300μA, 10mA
Current - Collector Cutoff (Max) 500nA
DC Current Gain (hFE) (Min) @ Ic, Vce 80 @ 5mA 10V
Max Collector Current 100mA
Collector Emitter Voltage (VCEO) 250mV
Transistor Type NPN - Pre-Biased
Power - Max 150mW
Current Rating 100mA
Max Power Dissipation 150mW
Voltage - Rated DC 50V
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2001
Packaging Tape & Reel (TR)
Physical
Supplier Device Package ML4-N1
Number of Pins 103
Package / Case SC-103
Mounting Type Surface Mount
Mount Surface Mount
