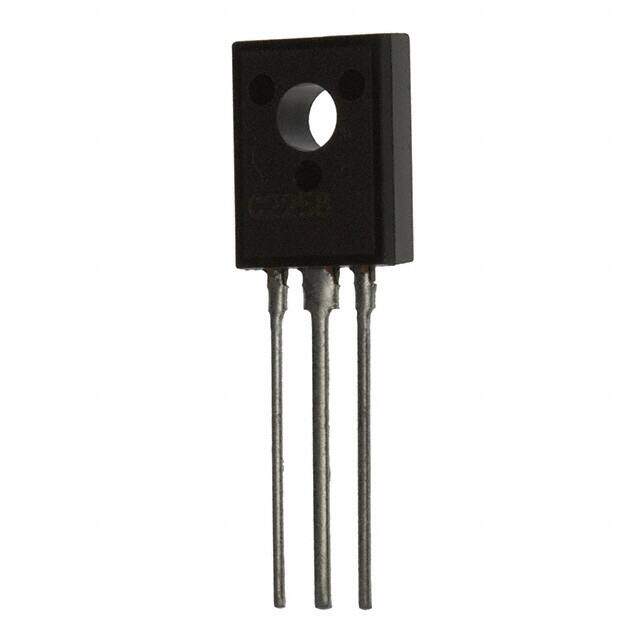

2SC3611
RoHS
/
Package TO-225AA, TO-126-3
Category Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Description
TRANS NPN 50V 0.15A TO-126
PDF
/
Inventory: 4212
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Technical
Frequency - Transition 300MHz
Max Breakdown Voltage 50V
Transition Frequency 350MHz
Collector Emitter Breakdown Voltage 50V
Vce Saturation (Max) @ Ib, Ic 500mV @ 15mA, 150mA
Current - Collector Cutoff (Max) 10μA
DC Current Gain (hFE) (Min) @ Ic, Vce 20 @ 100mA 5V
Max Collector Current 150mA
Collector Emitter Voltage (VCEO) 500mV
Transistor Type NPN
Polarity/Channel Type NPN
Transistor Application AMPLIFIER
Power - Max 4W
Case Connection ISOLATED
Configuration SINGLE
Number of Elements 1
Qualification Status Not Qualified
JESD-30 Code R-PSFM-T3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code unknown
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Max Power Dissipation 4W
Subcategory Other Transistors
HTS Code 8541.29.00.75
Terminal Finish TIN SILVER BISMUTH COPPER
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Published 2003
Packaging Bulk
Operating Temperature 150°C TJ
Physical
Transistor Element Material SILICON
Package / Case TO-225AA, TO-126-3
Mounting Type Through Hole
Mount Through Hole
