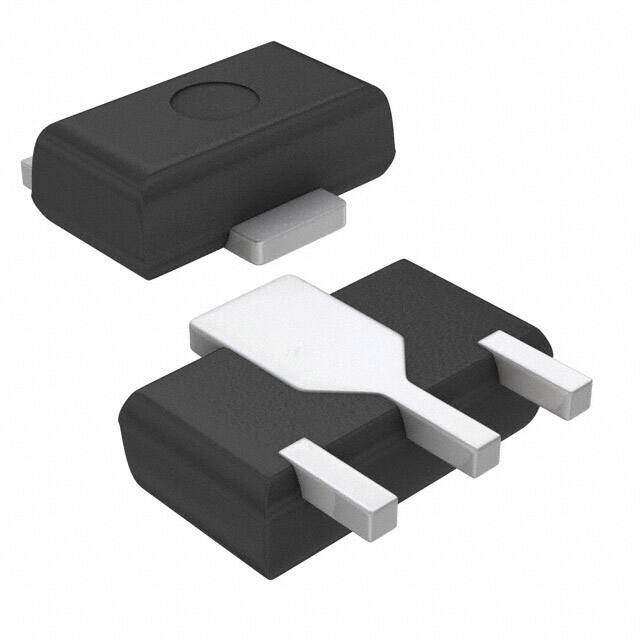

2SB15990RL
RoHS
/
Package TO-243AA
Category Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Description
TRANS PNP 40VCEO 1.5A MINI PWR
PDF
/
Inventory: 3084
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Technical
Frequency - Transition 150MHz
Max Breakdown Voltage 40V
Current - Collector (Ic) (Max) 1.5A
Voltage - Collector Emitter Breakdown (Max) 40V
Collector Emitter Breakdown Voltage 40V
Vce Saturation (Max) @ Ib, Ic 1V @ 150mA, 1.5A
Current - Collector Cutoff (Max) 100μA
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 1A 5V
Max Collector Current 1.5A
Collector Emitter Voltage (VCEO) 1V
Transistor Type PNP
Power - Max 1W
Base Part Number 2SB1599
Current Rating -1.5A
Max Power Dissipation 1W
Voltage - Rated DC -40V
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2002
Packaging Tape & Reel (TR)
Operating Temperature 150°C TJ
Physical
Supplier Device Package MiniP3-F1
Package / Case TO-243AA
Mounting Type Surface Mount
Mount Surface Mount
