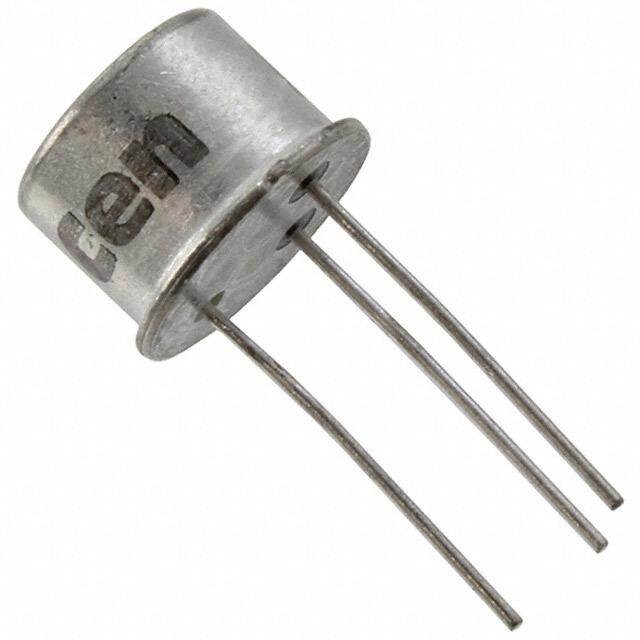

2N697A
RoHS
/
Package TO-39
Category Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Description
Bipolar Transistors - BJT NPN Med Pwr
PDF
/
Buying Options
Total Price: USD $12.76
Unit Price: USD $12.75755
≥1 USD $12.75755
≥10 USD $10.46805
≥100 USD $10.1403
≥500 USD $9.8135
≥1000 USD $9.4867
Inventory: 7901
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
DC Current Gain-Min (hFE) 40
hFE Min 40
Emitter Base Voltage (VEBO) 5V
Collector Base Voltage (VCBO) 60V
Frequency - Transition 50MHz
Transition Frequency 50MHz
Collector Emitter Breakdown Voltage 35V
Max Collector Current 1μA
Collector Emitter Voltage (VCEO) 35V
Gain Bandwidth Product 50MHz
Transistor Application SWITCHING
Power Dissipation-Max 5W
Configuration SINGLE
Polarity NPN
Number of Elements 1
Operating Temperature (Max) 200°C
Qualification Status Not Qualified
JESD-30 Code O-MBCY-W3
Pin Count 3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form WIRE
Terminal Position BOTTOM
Subcategory Other Transistors
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 3
Part Status Active
Pbfree Code no
JESD-609 Code e0
Published 2012
Packaging Bulk
Physical
Transistor Element Material SILICON
Package / Case TO-39
Mount Through Hole
Supply Chain
Factory Lead Time 8 Weeks
