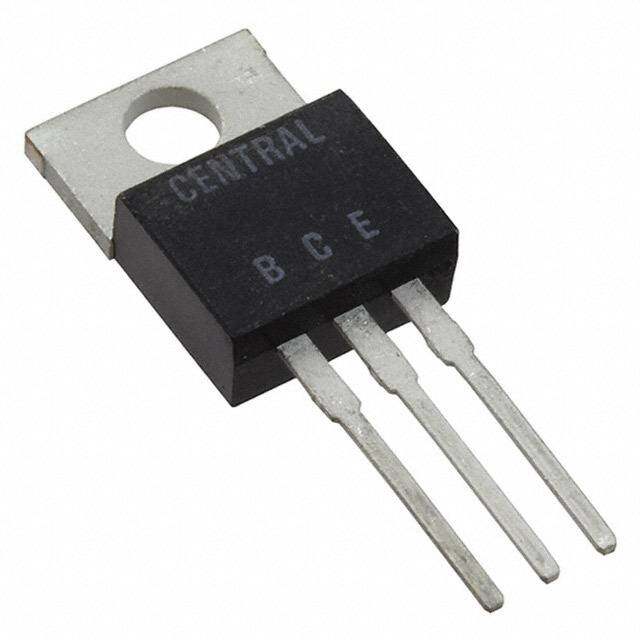

2N6123
RoHS
/
Package TO-220
Category Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Description
PDF
/
Buying Options
Total Price: USD $0.99
Unit Price: USD $0.9856
≥1 USD $0.9856
≥10 USD $0.9328
≥100 USD $0.8888
≥500 USD $0.836
≥1000 USD $0.8184
Inventory: 53
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Technical
Continuous Collector Current 450mA
DC Current Gain-Min (hFE) 20
hFE Min 20
Emitter Base Voltage (VEBO) 5V
Collector Base Voltage (VCBO) 80V
Frequency - Transition 2.5MHz
Collector Emitter Saturation Voltage 1.4V
Transition Frequency 2.5MHz
Collector Emitter Breakdown Voltage 80V
Max Collector Current 4A
Collector Emitter Voltage (VCEO) 80V
Gain Bandwidth Product 2.5MHz
Transistor Application SWITCHING
Case Connection COLLECTOR
Power Dissipation 40W
Power Dissipation-Max 40W
Configuration SINGLE
Polarity NPN
Number of Elements 1
Qualification Status Not Qualified
JESD-30 Code R-PSFM-T3
Pin Count 3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 2.5MHz
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Subcategory Other Transistors
Min Operating Temperature -65°C
Max Operating Temperature 150°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 3
Part Status Active
Pbfree Code no
JESD-609 Code e0
Published 2001
Physical
Package / Case TO-220
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
