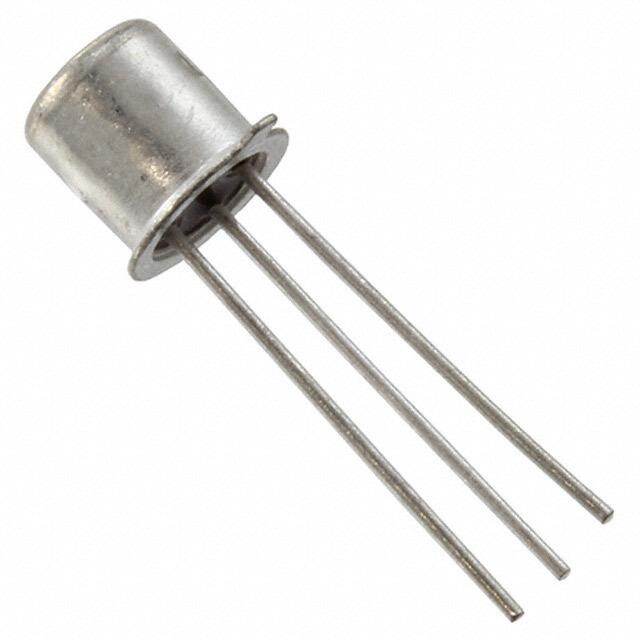

2N3250
RoHS
/
Package TO-18
Category Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Description
Bipolar Transistors - BJT PNP Gen Pur SS
PDF
/
Buying Options
Total Price: USD $3.6
Unit Price: USD $3.59955
≥1 USD $3.59955
≥10 USD $2.95355
≥100 USD $2.8614
≥500 USD $2.76925
≥1000 USD $2.6771
Inventory: 1372
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Turn On Time-Max (ton) 70ns
Turn Off Time-Max (toff) 225ns
DC Current Gain-Min (hFE) 15
hFE Min 15
Emitter Base Voltage (VEBO) 5V
Collector Base Voltage (VCBO) 50V
Frequency - Transition 250MHz
Collector Emitter Saturation Voltage 500mV
Transition Frequency 250MHz
Collector Emitter Breakdown Voltage 40V
Max Collector Current 200mA
Collector Emitter Voltage (VCEO) 500mV
Gain Bandwidth Product 250MHz
Transistor Application SWITCHING
Element Configuration Single
Power Dissipation-Max 360mW
Polarity PNP
Number of Elements 1
Qualification Status Not Qualified
JESD-30 Code O-MBCY-W3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form WIRE
Terminal Position BOTTOM
Subcategory Other Transistors
HTS Code 8541.21.00.75
Min Operating Temperature -65°C
Max Operating Temperature 150°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 3
Part Status Active
Pbfree Code no
JESD-609 Code e0
Published 2016
Physical
Package / Case TO-18
Mount Through Hole
Supply Chain
Factory Lead Time 8 Weeks
